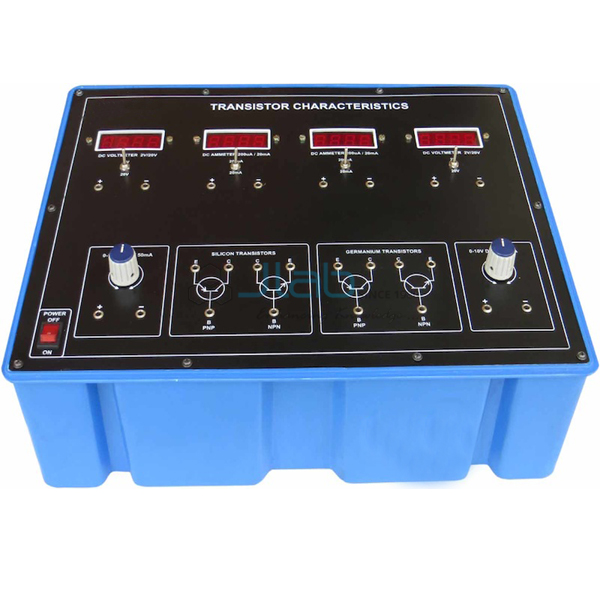

Training Board for Transistor

Object:

To study and plot the Transistor input and output Characteristics in the following configurations:

• Common Emitter Mode
• Common Base Mode
• Common Collector Mode

Features:

• The board consists of the following built-in parts :
• 06. Mains ON/OFF switch, Fuse and Jewel light
• The unit is operative on 230V ±10% at 50Hz A.C. Mains
• Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug, length ½ metre
• Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms
• Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Specification:

• Two 0-10V DC at 50mA, continuously variable Power Supplies for Base Emitter & Collector Emitter junctions
• Two Digital Voltmeter DC 3½ Digit having Dual range of 2V / 20V
• Two Digital Current meter DC 3½ Digit having Dual range of 200mA / 20mA
• Two silicon (NPN & PNP) transistors and two Germanium (NPN & PNP) transistors
• Adequate No. of other electronic components
