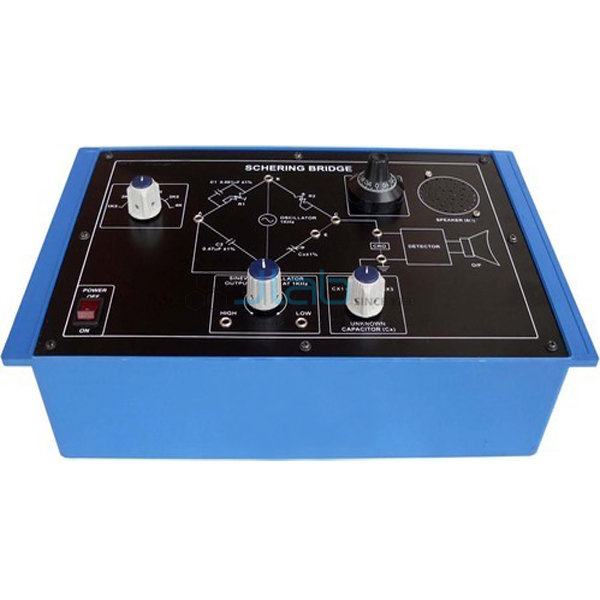

Schering Bridge Trainer

Product Code : JA-AET-1475

Schering Bridge Trainer

Object:

  • To Measure the Value of Unknown Capacitance by Schering Bridge

Special Features:

  • Schering Bridge circuit with arms values
  • ±12 VDC at 100 mA, IC Regulated Power Supply internally connected
  • 1KHz Sine wave oscillator having output 0-15 Vpp
  • Audio amplifier and speaker for null detector
  • Three unknown value of capacitors selectable by a band switch
  • Potentiometer for balancing the bridge
  • Band switch to select one from six different values of resistance
  • Adequate no. of other Electronic Components
  • Mains ON/OFF switch, Fuse & Jewel light
  • The unit is operative on 230V ±10% at 50Hz AC Mains
  • Adequate no. of patch cords stackable 4mm spring loaded plug length 1/2 metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object Theory, Design procedures, Report Suggestions and Book References

Weight:

  • 3 Kg. (Approx.)

Dimension:

  • W 340 x H 110 x D 210210
