AC Regulators Using Triac Anti Parallel Thyristor Manufacturer,Supplier and Exporter in India
Product Code : JA-PET-1432

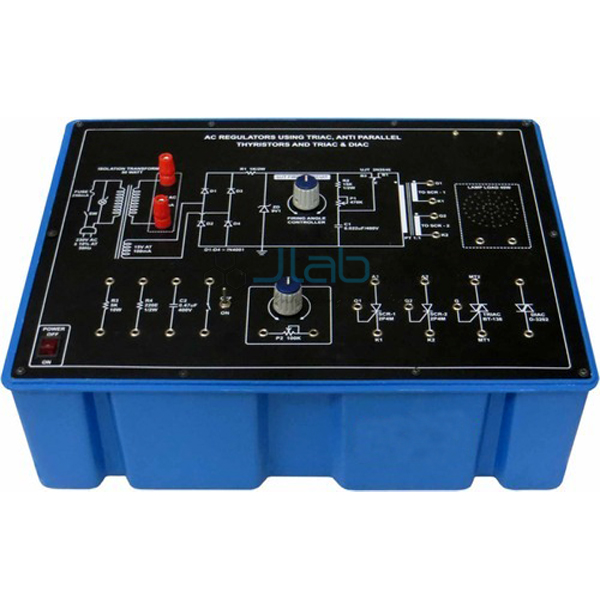

The AC regulator using TRIAC and anti-parallel thyristors trainer compares three ways of controlling AC power: a TRIAC, two thyristors connected in anti-parallel, and a TRIAC with a DIAC and an R-C triggering circuit. A UJT, a 1:1:1 pulse transformer and a firing-angle potentiometer are built in, with a 230 V AC, 50 W isolated transformer and a 40 W bulb (SKU JA-PET-1432).
Specifications
The AC regulator board is listed with these parts and ratings:
| Product | AC Regulators Using Triac Anti Parallel Thyristor |
| SKU | JA-PET-1432 |
| Isolated transformer | 230 V AC, 50 W |
| Firing supply | 9 V DC at 100 mA, zener regulated |
| SCRs | Two |
| UJT | One |
| TRIAC and DIAC | One each |
| Pulse transformer | 1:1:1 |
| Controls | Two potentiometers: one for the UJT firing angle, one for varying the load |
| Bulb | 40 W, 230 V AC |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm stackable spring-loaded plugs, 0.5 m |
| Weight | 6 kg approx. |
| Dimensions | W 300 x H 140 x D 200 mm |
| Other apparatus required | Dual trace CRO 20 MHz (unearthed), or with an isolation transformer for unearthing |
AC regulator circuits studied
The listed experiments are:
- AC regulator using a TRIAC
- AC regulator using thyristors connected in anti-parallel
- AC regulator using a TRIAC and a DIAC with an R-C triggering circuit
Scope of supply and ordering
The listing covers the AC regulator board with its isolated transformer and 40 W bulb, patch cords and operating instructions, supplied by JaincoLab.
Frequently asked questions
Which AC regulator circuits can be built?
Three: a TRIAC regulator, an anti-parallel thyristor regulator and a TRIAC-DIAC regulator with R-C triggering.
Which devices are fitted?
Two SCRs, a TRIAC, a DIAC and a UJT, with a 1:1:1 pulse transformer.
Can the load be varied?
Yes. One of the two potentiometers varies the load; the other controls the UJT firing angle.
