Voltage Commutated Thyristorised Chopper

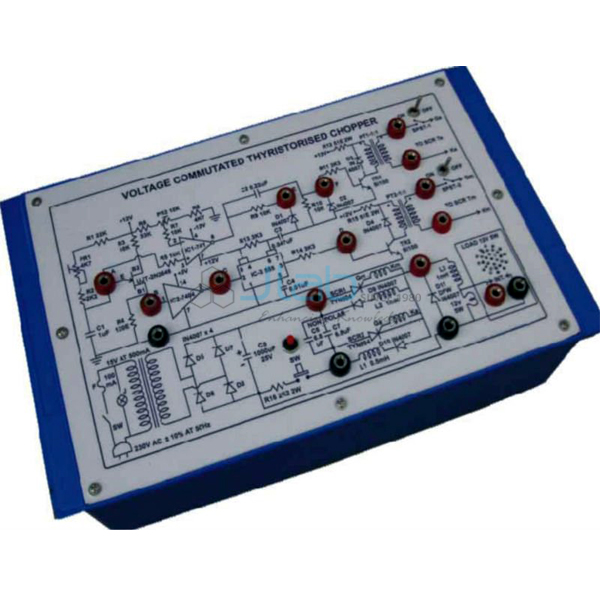

Power Electronic Training Board has been designed specifically for the study of the step down voltage commutated thyristorised chopper.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To study the step down voltage commutated thyristorised chopper

Features:

The board consists of the following built-in parts:

±12V D.C. at 100mA IC regulated power supply internally connected
5V D.C. at 100mA IC regulated power supply internally connected
Bridge Rectifier for making D.C. voltage
UJT as relaxation oscillator
Op-Amp. IC
Timer IC
Hex Inverter Gate IC
Two SCR’s
Two pulse transformer 1:1:1
Two NPN transistor
Two SPST switch
Push-To-On switch.
Freewheeling diode
Inductors
Bulb 12V, 6W
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
