Three Phase Full Wave Rectifier

Product Code : JA-PET-1442

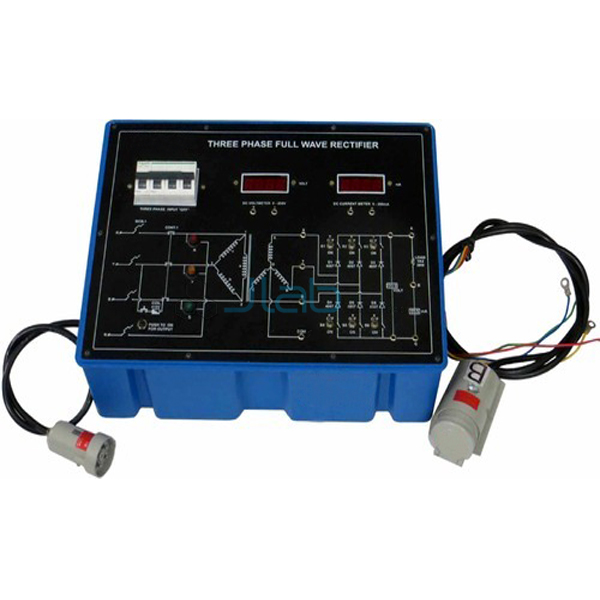

Three Phase Full Wave Rectifier

  • Power Electronic Training Board has been designed specifically for the study of three phase full wave rectifier.
  • Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

  • To study three phase full wave rectifier

Features:

The board consists of the following built-in parts:

  • Three phase transformer
  • Digital Panel meter 3½ digits range 200V to measure the DC output voltage
  • Digital Panel meter 3½ digits range 200mA to measure the d.c. load current
  • 3 pole power connector with AC coil complete with push to ON switch
  • Four pole Miniature Circuit Breaker (MCB)
  • Three different colour neon indicator provided for indication
  • Resistive load 600E, 10 Watt
  • Six rectifier diodes
  • Six SPST switches
  • Three phase 415V at 50Hz, 20Amp. socket
  • The unit is operative on 3-f 415V at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ meter
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections observation of wave forms

Weight:

  • 7 Kg. (Approx.)

Dimension:

  • W 412 x H 150 x D 310

Other Apparatus Required:

  • Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
  • Isolation transformer 50W for unearthing the oscilloscope
