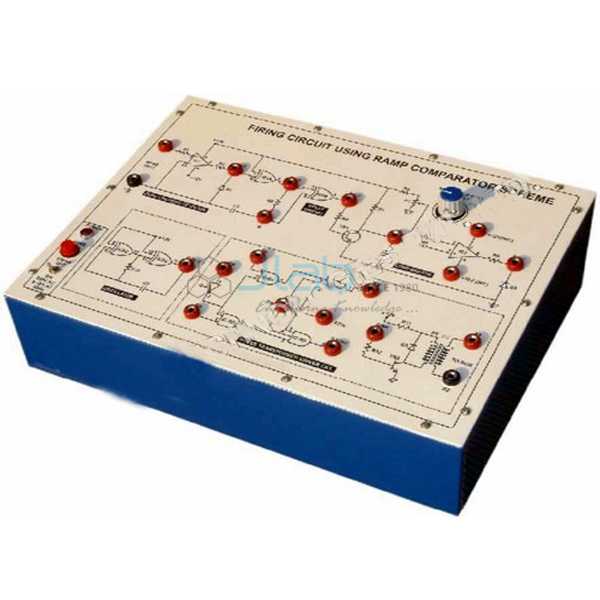

Firing Circuit Using Ramp Comparator Scheme

Power Electronic Training Board has been designed specifically for the study of the firing circuit for single phase converter using Ramp Comparator Scheme.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To study the firing circuit for single-phase converter using Ramp Cooperator Scheme.

Features:

The board consists of the following built-in parts:

6VAC at 100mAAC Power Supply
±12V DC at 100mA fixed regulated Power Supply
Two Op-Amp’s. IC
Quad, Ex-OR gate IC
Triple, 3 input AND gate IC
Hex inverter gate IC
Quad, two input AND gate IC
Two NPN Transistor
Potentiometer for reference voltage adjustment
Pulse Transformer 1: 1
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ meter
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
