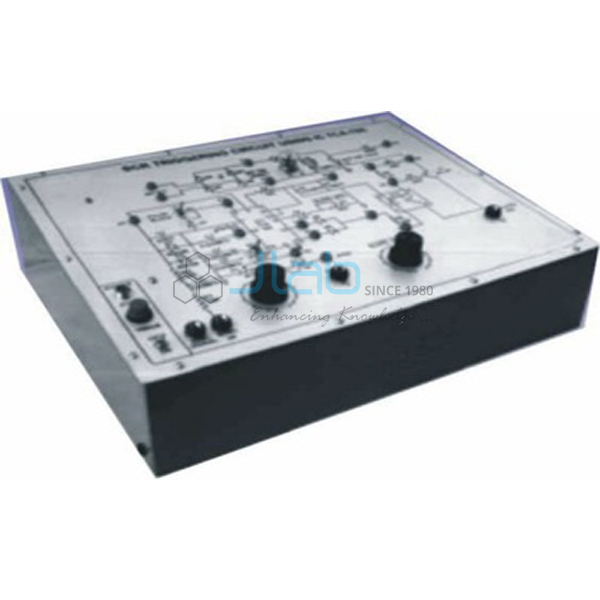

SCR Triggering Circuit

Product Code : JA-PET-1424
Jaincolab is a leading SCR Triggering Circuit Manufacturer,and suppliers in India, SCR Triggering Circuit Manufacturer,and suppliers in South Africa, SCR Triggering Circuit Algeria (Algiers), SCR Triggering Circuit Angola (Luanda), SCR Triggering Circuit Argentina (Buenos Aires), SCR Triggering Circuit Armenia (Yerevan), SCR Triggering Circuit Australia (Canberra), SCR Triggering Circuit Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

SCR Triggering Circuit

  • SCR Triggering using IC TCA-785.
  • This Training Board gives a better understanding on the operation of Signal Conditioner and Pulse Generator IC TCA-785.
  • Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To perform the following experiments:

  • SCR triggering with controlled gate pulses
  • Change of firing angle in response to the change in reference voltage
  • Functioning of Signal Conditioner and Pulse Generator IC TCA-785


Features:

The board consists of the following built in parts:

  • + 15V, +10V D.C. at 50mA, IC Regulated Power Supply internally connected
  • + 5V D.C. at 50mA, IC Regulated Power Supply Isolated
  • Synchronising Signal
  • 24V at 300mAA.C. supply
  • Signal Conditioner and Pulse Generator IC TCA-785
  • Op to Coupler
  • SCR 100V/1Amp
  • Transistor BC-107
  • Adequate no. of other Electronic Components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory,
  • Design procedures, Report Suggestions and Book References

Weight:

  • 4 Kg. (Approx.)

Dimension:

  • W 412 x H 150 x D 310

Other Apparatus Required:

  • Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
  • Bulb 24V/7W

Note:

  • Specifications are subject to change

Other Information:

Pay Mode Terms:

  • T/T (Bank Transfer)

Port of Dispatch:

  • India

Delivery Time:

  • 4 weeks

Packaging Details:

  • Corrugated Box
