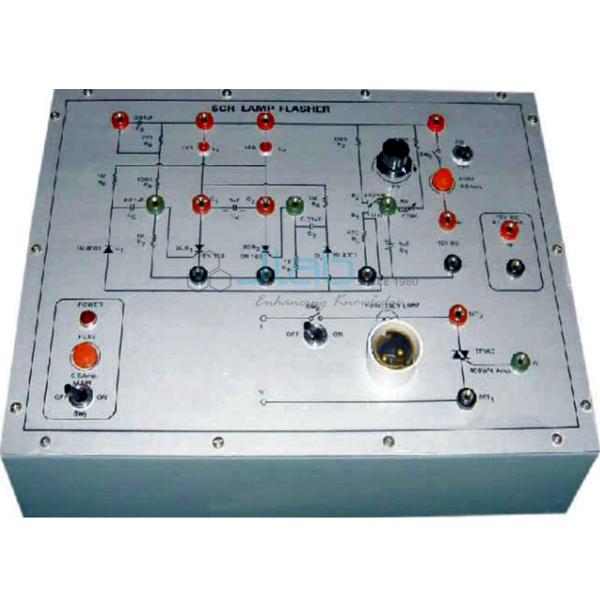

SCR Lamp Flasher

Power Electronic Training Board has been designed specifically to study the use of SCR and TRIAC in D.C. and A.C. lamp flasher respectively.
The flasher is useful for students of understand the application of SCRs in D.C. flasher, triggered by UJT relaxation oscillator.
The repetition rate of the flasher can be varied by varying the frequency of the relaxation oscillator.
This Training Board also makes use of the same SCR D.C. flasher for making the TRIAC ON and OFF in the A.C. power circuit which operates a normal 230V incandescent lamp used as load.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To perform the following experiments:

Symmetrical D.C. flasher
High power A.C. flasher

Features:

The board consists of the following built-in parts:

12V D.C. at 100mA, IC Regulated Power Supply
Two SCRs
TRIAC 4 Amp./400PIV
230V/40 Watt lamp for load
UJT 2N 2646 in relaxation oscillator mode
Two LEDs to demonstrate Twin-lamp D.C. flasher
Potentiometer for frequency variation
Two numbers of toggle switches, one for D.C. flasher, and one for A.C. flasher
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
Weight : 5 Kg. (Approx.)
Dimension : W 412 x H 150 x D 310
