Forced Commutated Circuits Manufacturer,Supplier and Exporter in India

Product Code : JA-PET-1438
Jaincolab is a leading Forced Commutated Circuits Manufacturer,and suppliers in India, Forced Commutated Circuits Manufacturer,and suppliers in South Africa, Forced Commutated Circuits Algeria (Algiers), Forced Commutated Circuits Angola (Luanda), Forced Commutated Circuits Argentina (Buenos Aires), Forced Commutated Circuits Armenia (Yerevan), Forced Commutated Circuits Australia (Canberra), Forced Commutated Circuits Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

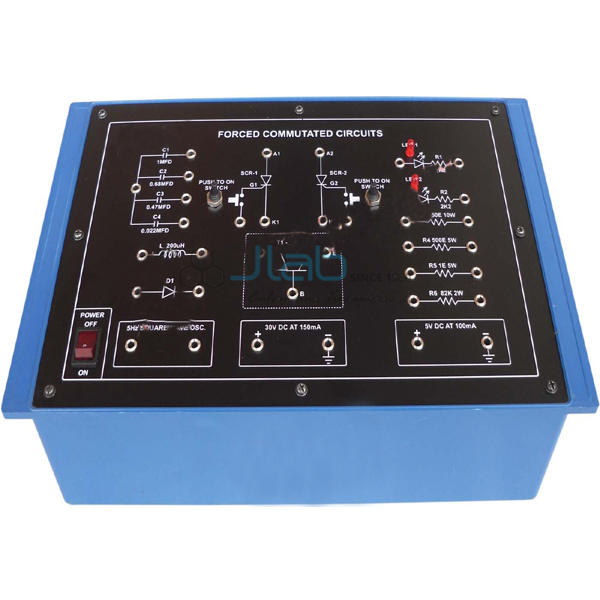

Forced Commutated Circuits

Power Electronic Training Board has been designed specifically for to study the forced commutated circuits.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To study the forced commutated circuits
Class - A or self commutation by resonating the load
Class - B or self commutation by an LC circuit
Class - C or commutation through charged capacitor switched by another load carrying SCR
Class - D or commutation through charged capacitor switched by an auxiliary SCR
Class - E or an External pulse source commutation

Features:

The board consists of the following built-in parts :

30V D.C. at 150mA Fixed Power Supply
5V D.C. at 50mA Fixed Power Supply
5Hz Square wave Oscillator
UJT Triggering Circuit for SCR’s
Two PUSH-TO-ON switch
NPN Transistor
Inductor
Diode & LED
Capacitor Bank
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
