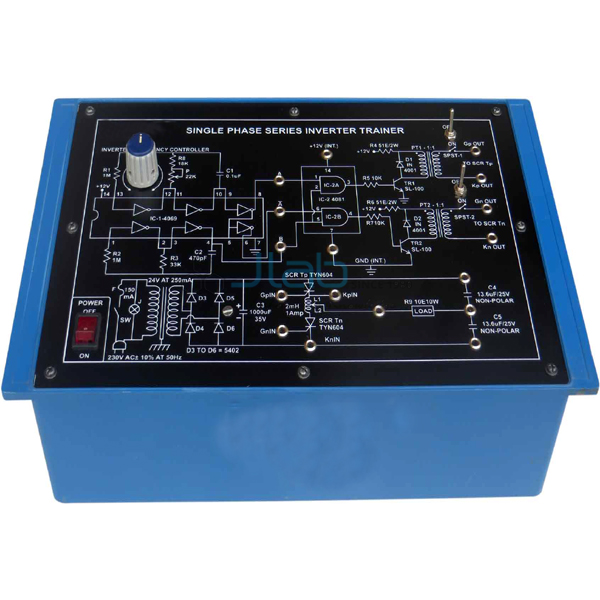

Single Phase Series Inverter

Power Electronic Training Board has been designed specifically for study of the Single Phase Series Inverter.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To study the Single Phase Series Inverter

Features:

The board consists of the following built-in parts:

12V DC at 100mA fixed regulated Power Supply
Bridge rectifier for making DC voltage
Hex Inverter IC
Quad, 2-input AND gate IC
Two Silicon Controlled Rectifiers (SCR’s)
Two Pulse transformer 1:1
Potentiometer for inverter frequency controller
Center taped Inductor
Two NPN transistor
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains.
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
