Single Phase PWM Converter

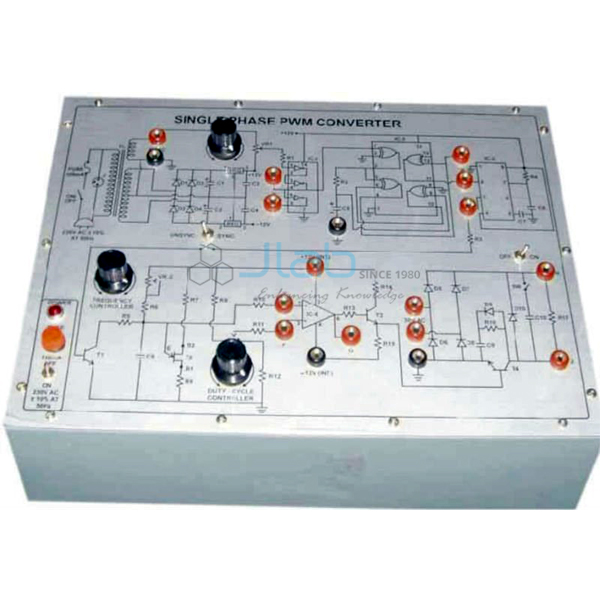

Power Electronic Training Board has been designed specifically for study of single phase PWM converter.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To Study Single Phase PWM Converter.

Features:

The board consists of the following built-in parts :

6VA.C. at 100mAAC Power Supply
30VA.C. at 100mAAC Power Supply
±12V D.C. at 100mA fixed regulated Power Supply
Timer
Op-Amp.
Hex inverter gate
Quad Ex-OR gate
Two NPN Transistor
One NPN Power Transistor
Uni junction transistor (UJT)
Three Potentiometers
Load
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains.
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ meter
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
