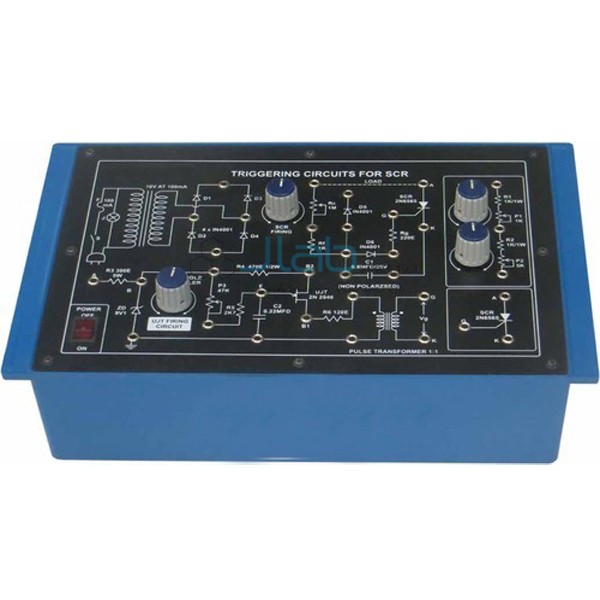

Triggering Circuits for SCR

Power Electronic Training Board has been designed specifically for the study of SCR Triggering circuits.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To study the SCR Triggering circuits using:

Resistor (R) Triggering circuit
Resistor - capacitor (R-C) Triggering circuit
Uni-junction Transistor (UJT) Triggering circuit (UJT relaxation Oscillator)
Half-wave controlled rectifier
Full-wave controlled rectifier

Features:

The board consists of the following built-in parts:

35VA.C. at 100mAA.C. Power Supply
Bridge rectifier for making D.C. voltage
Two Silicon controlled rectifier (SCR)
Uni junction Transistor
Pulse transformer 1:1
Two potentiometer for varying load
Two potentiometer one for controlling SCR firing angle and other for controlling UJT firing angle
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
