Single Phase Fully Controlled Bridge Converter

Product Code : JA-PET-1427

Single Phase Fully Controlled Bridge Converter

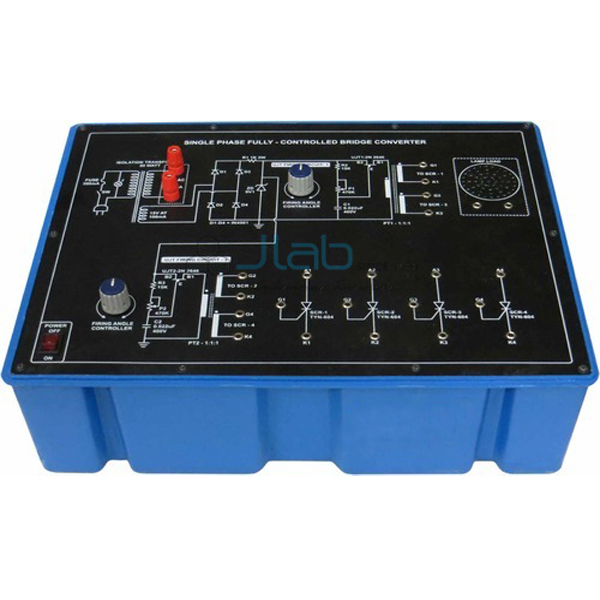

  • Power Electronic Training Board has been designed specifically to study and obtain the single phase fully controlled bridge converter.
  • Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

  • Study and obtain the single phase fully controlled bridge converter

Features:

The board consists of the following built in parts:

  • 230VA.C. Isolated Transformer, Power 50 watt
  • 9V D.C. at 100mA Zener Regulated Power Supply
  • Two UJT
  • Four SCR’s
  • Two Pulse transformers 1:1:1
  • Two Potentiometers for controlling UJT firing angle
  • Bulb 40W, 230 V A.C.
  • Adequate no. of other Electronic Components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms

Weight:

  • 6 Kg. (Approx.)

Dimension:

  • W 300 x H 140 x D 200
  • Dual Trace Cathode Ray Oscilloscope 20 MHz (Unearthed)/with Isolation Transformer for unearthing

Note:

  • Specifications are subject to change

Other Information:

Port of Dispatch:

  • India

Delivery Time:

  • 4 weeks

Packaging Details:

  • Corrugated Box
