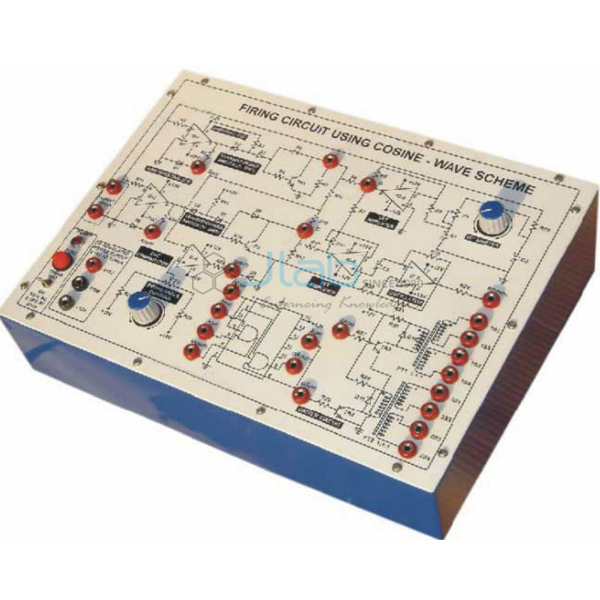

Firing Circuit Using Cosine Wave Scheme

Power Electronic Training Board has been designed specifically for the study of the firing circuit for single-phase converter using cosine wave comparator scheme.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To Study firing circuit for single-phase converter using Cosine-Wave Comparator Scheme

Features:

The board consists of the following built-in parts:

6VAC at 100mA, AC Power Supply
±12V DC at 100mA fixed regulated Power Supply
Six Op-Amps IC
Triple, 3 input AND gate IC
Four NPN Transistor
Two Potentiometer
Two Pulse Transformer 1:1:1
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains.
Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ meter
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
