Thyristor Time Delay Relay

Product Code : JA-PET-1421
Jaincolab is a leading Thyristor Time Delay Relay Manufacturer,and suppliers in India, Thyristor Time Delay Relay Manufacturer,and suppliers in South Africa, Thyristor Time Delay Relay Algeria (Algiers), Thyristor Time Delay Relay Angola (Luanda), Thyristor Time Delay Relay Argentina (Buenos Aires), Thyristor Time Delay Relay Armenia (Yerevan), Thyristor Time Delay Relay Australia (Canberra), Thyristor Time Delay Relay Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Thyristor Time Delay Relay

  • Study of delayed Turn-ON of D.C. load
  • Study of auto Turn-OFF of D.C. load
  • Study of delayed Turn-ON of TRIAC as line switch
  • Study of auto Turn-OFF of TRIAC as line switch

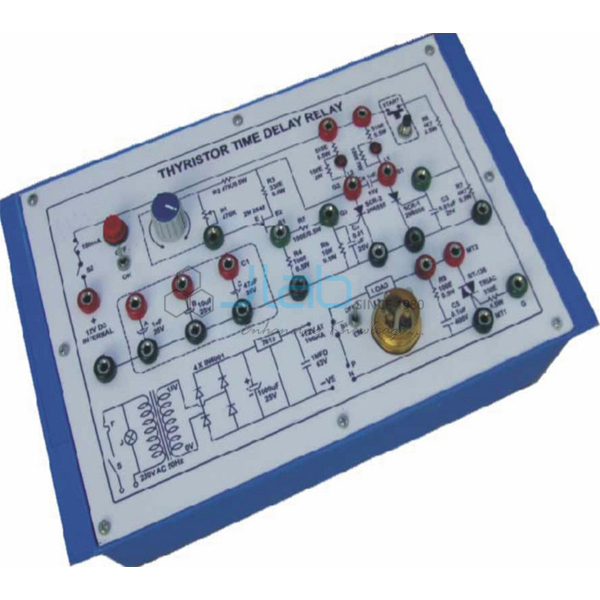

The board consists of the following built in parts:

  • 12V D.C. at 2 Amp, Power Supply internally connected
  • UJT 2N 2646 used as timer
  • Potentiometer for ramp control to adjust time delay
  • Set of 3 Capacitors for time delay control
  • Two SCRs connected in parallel coupled mode
  • Commutation capacitor.
  • Push button switch for starting
  • TRIAC for A.C. line switch
  • Lamp holder with 15 watt 230V lamp for A.C. load
  • Adequate no. of other Electronic Components
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.

Weight :

  • 3 Kg. (Approx.)

Dimension :

  • W 340 x H 110 x D 210
  • Other Apparatus Required
  • Digital Multimeter 3¾ digit - Order Code 16901
