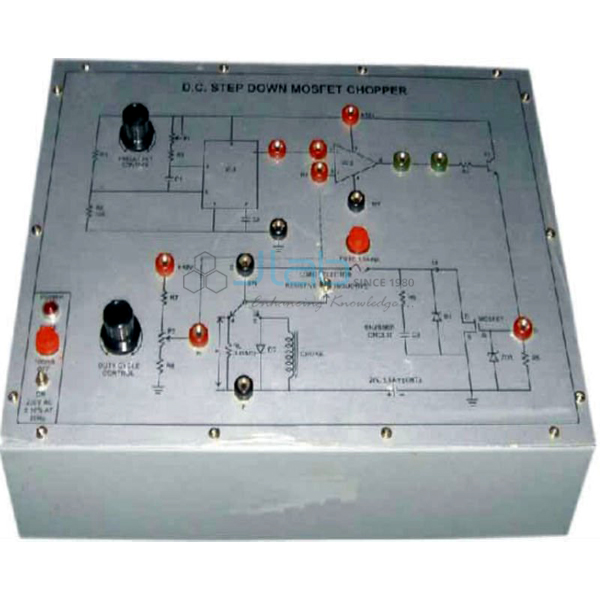

DC Step Down Mosfet Chopper

Looking to the recent requirement of educational institutions, we have developed Omega Type.
D.C. Step down mosfet chopper.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To study D.C. Step down Mosfet Chopper

Features :

The board consists of the following built-in parts:

± 12 Volt D.C. at 100mA, regulated Power Supply
20 Volt DC at 1A, regulated Power Supply
IC for triangular pulse generation
IC to drive MOSFET
MOSFET
Two potentiometer for varying frequency and duty cycle
Adequate no. of other Electronic Components
Mains ON/OFF switch and Neon Jewel light for indication
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length 1/2 metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
