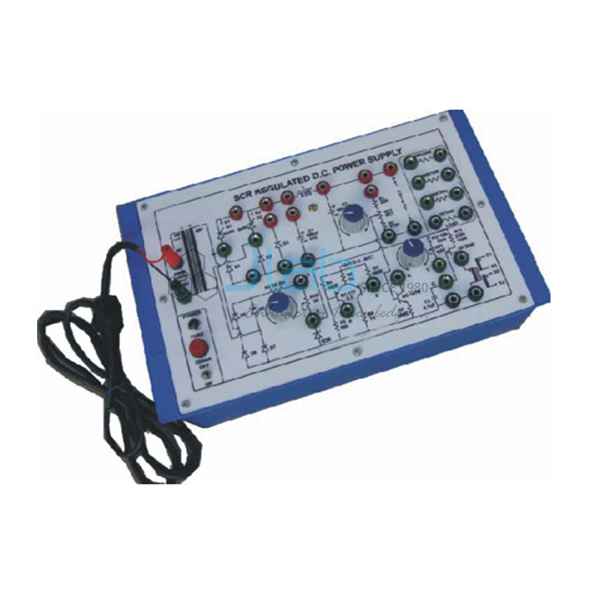

SCR Regulated DC Power Supply

Product Code : JA-PET-1419
Jainco Lab is a leading SCR Regulated DC Power Supply Manufacturer,and suppliers in India, SCR Regulated DC Power Supply Manufacturer,and suppliers in South Africa.SCR Regulated DC Power Supply Suppliers in Mozambique,SCR Regulated DC Power Supply, SCR Regulated DC Power Supply Montenegro, SCR Regulated DC Power Supply (Podgorica), SCR Regulated DC Power Supply Morocco (Rabat), SCR Regulated DC Power Supply Mozambique (Maputo), SCR Regulated DC Power Supply Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nicaragua (Managua), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Romania (Bucharest), Rwanda (Kigali), Samoa (Apia), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Seychelles (Victoria), Sierra Leone (Freetown), Slovakia (Bratislava), Somalia (Mogadishu), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.), Uruguay (Montevideo), Uzbekistan (Tashkent), Venezuela (Caracas), Vietnam (Hanoi), Yemen (Sana'a), Zambia (Lusaka), Zimbabwe (Harare) .

SCR Regulated DC Power Supply

  • Study of output voltage variation, regulation and ripple in open loop (without feedback) by varying the load using inductance input filter
  • Same as above experiment by using capacitor input filter
  • Study of output voltage variation, regulation and ripple in closed loop feed back by varying the load using inductance input filter shunt transistor pedestal control.
  • Same as above experiment by using capacitor input filter-shunt transistor pedestal control
  • Study of variation in output voltage for different slopes of linear resistance controlled ramp
  • Study of line voltage variation (open loop) compensation
  • Study of output voltage variation, regulation and ripple in closed loop feed back by varying load-series transistor controlled ramp in differential amplifier mode

Features:

The board consists of following built-in parts:

  • 24V D.C. Regulated Power Supply internally connected
  • Freewheeling diode
  • Transformer 0-40V, 500 mA
  • Two SCRs connected in bridge configuration with rectifiers
  • Four Diode connected in bridge and one zener for control circuit supply
  • UJT 2N 2646 for relaxation oscillator to supply triggering pulses for SCRs
  • Pulse transformer 1:1:1.
  • Three potentiometers for different modes of voltage adjustment
  • Adequate no. of other Electronic Components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Weight:

  • 3 Kg. (Approx.)

Dimension:

  • W 340 x H 110 x D 210

Other Apparatus Required:

  • Digital Multimeter 3¾ digit - Order Code 16901
  • Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
  • Variac, 0-230VA.C. @ 2Amp

Pay Mode Terms:

  • T/T (Bank Transfer)

Port of Dispatch:

  • India

Delivery Time:

  • 4 weeks

Packaging Details:

  • Corrugated Box
