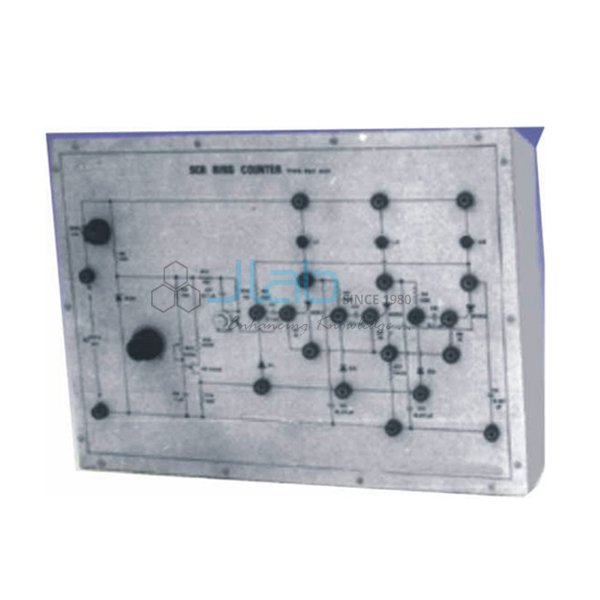

SCR Ring Counter

  • Stage SCR Ring Counter which can be extended to any number of stages by adding identical circuitry, if required.
  • This board demonstrates high power load switching in a sequential order.
  • This set-up can also be used as sequential flash over.
  • The time delay between each sequence is adjustable.
  • This training board facilitates students to understand UJT triggering circuit for SCRs and communication circuit for turning them off in sequential operations.
  • Practical experience on this board carries great educative value for Science and Engineering Students.


  • To study operation of Ring Counter with internal load
  • To study operation of Ring Counter with external load


The board consists of the following built in parts:

  • 20V D.C. Zener Regulated Power Supply for control pulse generator
  • UJT 2N 2646 in relaxation oscillator configuration which provides triggering pulses to SCRs
  • Potentiometer for variable time delay
  • Three SCRs to form three stages of ring counter
  • Three diodes for providing triggering pulses
  • Three dual indicating lamps for indication of sequences
  • UJT 2N 2646 under experiment
  • Adequate no. of other Electronic Components
  • Fuse for protection
  • The unit is operative on 220V D.C. Source
  • Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References


  • 4 Kg. (Approx.)


  • W 412 x H 150 x D 310

Other Apparatus Required:

  • 220V D.C. at 100mA IC Regulated Power Supply
