Lamp Dimmer Using Diac and Triac Manufacturer,Supplier and Exporter in India
Product Code : JA-PET-1440

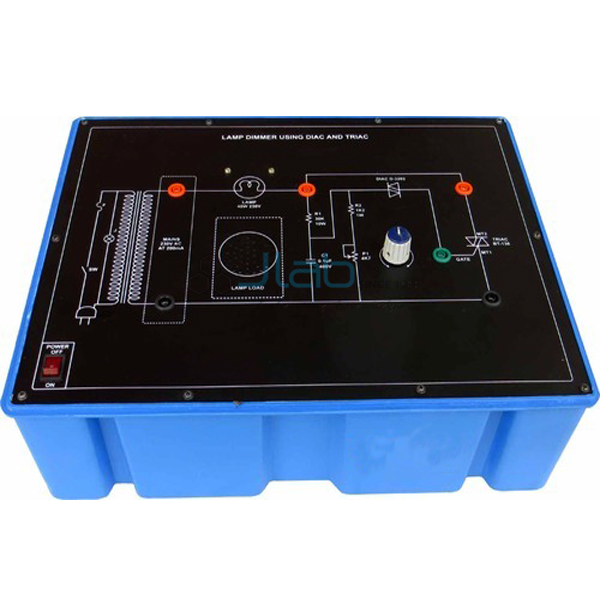

The lamp dimmer using DIAC and TRIAC trainer lets students study the familiar phase-control lamp dimmer on a self-contained board that needs no other apparatus. A potentiometer sets the lamp intensity, and a TRIAC, a DIAC, a lamp load and an isolation transformer with a 230 V AC, 200 mA output are built in (SKU JA-PET-1440).
Specifications
The lamp dimmer board carries:
| Product | Lamp Dimmer Using Diac and Triac |
| SKU | JA-PET-1440 |
| Isolation transformer | Output 230 V AC at 200 mA |
| Devices | TRIAC and DIAC |
| Load | Lamp |
| Intensity control | Potentiometer |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm stackable spring-loaded plugs, 0.5 m |
| Connections | Terminals and sockets on the panel for connections and waveform observation |
| Other apparatus | None required; the board is self-contained |
| Weight | 6 kg approx. |
| Dimensions | W 300 x H 140 x D 200 mm |
Scope of supply and ordering
The listing covers the self-contained DIAC-TRIAC lamp dimmer board with its lamp load, patch cords and operating instructions, supplied by JaincoLab.
Frequently asked questions
Does the lamp dimmer board need any other apparatus?
No. The board is self-contained and requires no other apparatus.
How is the lamp brightness controlled?
With a potentiometer that controls the intensity of the lamp through the DIAC and TRIAC circuit.
What does the isolation transformer supply?
An output of 230 V AC at 200 mA.
Related products
- Triac and AC Phase Control
- AC Regulators Using Triac Anti Parallel Thyristor
- Triac AC Line Switching
- Universal Motor Speed Control
Browse the full power electronics trainers range for related items.
Request a quote
To order the Lamp Dimmer Using Diac and Triac, send the SKU JA-PET-1440, the quantity and the delivery destination through the JaincoLab contact page. For tender or project supply, see our tenders page.
