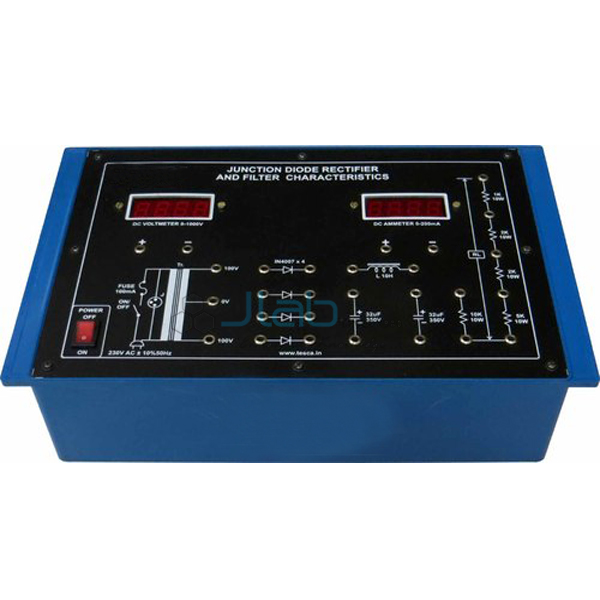

Training Board for Junction Diode Rectifier and Filter

Object:

Study of Junction Diode Rectifier output and ripple content for different resistive loads for:

  • Half wave
  • Full wave (Centre Tap)
  • Full wave (Bridge)
  • Voltage Double Circuit

Study of filter and load regulation characteristics for half wave and full wave rectifier having different resistive loads and filters of the type:

  • Capacitor filter
  • Capacitor Filter with capacitor value doubled
  • Inductor filter
  • Capacitor input L section filter
  • Capacitor input p section filter

Features:

The board consists of the following built-in parts:

  • Mains transformer, secondary centre tap 100-0-100V at 100mA
  • Digital Voltmeter DC 3½ Digit having range of 1000V
  • Digital Current meter DC 3½ Digit having range of 200mA
  • Four Silicon Junction Diodes
  • Filter choke
  • Adequate no. of other electronic components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz AC Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ meter
  • Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object and Theory
  • Design procedures, Report Suggestions and Book References
