Adapters - Receiver, Vertical with Vacuum Connection Manufacturer,Supplier and Exporter in India
Product Code : JA-LAOK-1565

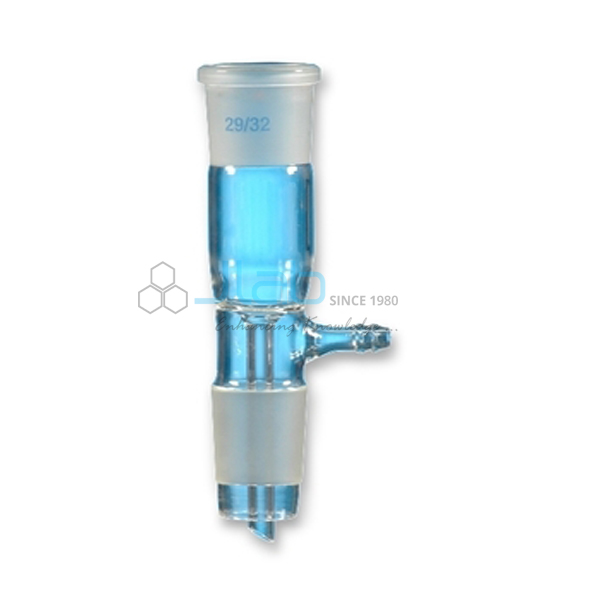

The Adapters - Receiver, Vertical with Vacuum Connection (product code JA-LAOK-1565) is a vertical receiver adapter for distillation at reduced pressure. It joins the condenser outlet to the receiving flask, delivers the distillate straight down, and has a side connection for tubing to a vacuum pump or water aspirator. Two cone and socket combinations are listed, B14/B19 and B24/B19, for college, school and research chemistry laboratories.
Specifications
This adapter is a vertical glass receiver piece with ground-glass joints and a vacuum connection. It is listed in two cone and socket combinations, B14/B19 and B24/B19, so buyers can match it to the condenser and receiving flasks already in use.
| Product | Adapters - Receiver, Vertical with Vacuum Connection |
| SKU / Product code | JA-LAOK-1565 |
| Type | Receiver adapter, vertical |
| Vacuum | Side connection for vacuum tubing |
| Joints | Ground-glass cone and socket, B-series |
| Cone / socket combinations listed | B14/B19, B24/B19 |
Applications of the vertical receiver adapter
The adapter is used at the collecting end of a distillation when the apparatus has to be evacuated, or when vapours must be drawn off through a tube instead of escaping into the room.
- Vacuum distillation with the receiver directly below the condenser
- Connecting the distillation train to a pump or water aspirator
- Venting a distillation through tubing to a fume cupboard or trap
- Organic chemistry practicals in colleges and advanced school laboratories
Scope of supply and ordering
The listing covers one vertical receiver adapter with a vacuum connection, in the cone and socket combination you choose. Tubing, flasks, accessories, spares and quantities are confirmed on the quotation.
Frequently asked questions
Which joint combinations are listed?
B14/B19 and B24/B19, where the first figure is the cone size and the second the socket size.
What is the side connection for?
It takes tubing to a vacuum pump or water aspirator, or to a trap for vapours.
Is a version for several receiving flasks available?
Yes. The range lists a vacuum receiver adapter that takes four 100 ml flasks.
