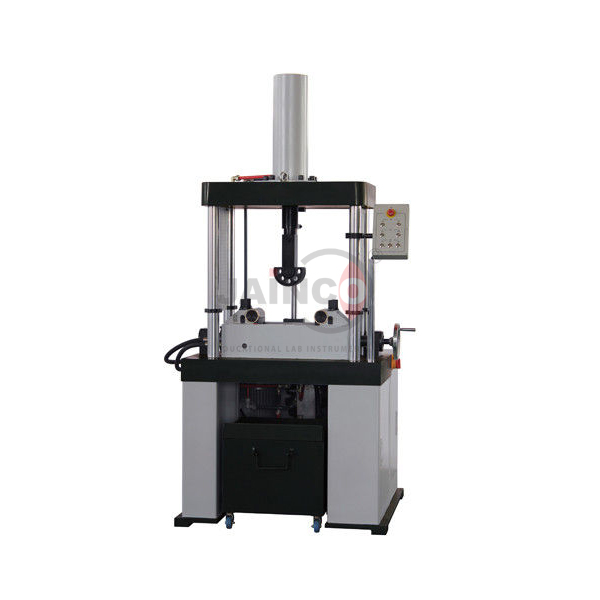

Bend Test Equipment

Product Code : JA-SWES-8749
Jaincolab is a leading Bend Test Equipment Manufacturer,and suppliers in India, Bend Test Equipment Manufacturer,and suppliers in South Africa, Bend Test Equipment Algeria (Algiers), Bend Test Equipment Angola (Luanda), Bend Test Equipment Argentina (Buenos Aires), Bend Test Equipment Armenia (Yerevan), Bend Test Equipment Australia (Canberra), Bend Test Equipment Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Bend Test Equipment
Description:-
One-step forming: this product bends specimen in one step during tests.
Then applies side loads to form interference bend on the specimen to eliminate remaining deformation, accomplishing a bending angle of 180°.
Effortless: requiring only one operator, who clicks the buttons to perform tests.
Safe: specimen bending directly into sealed test table, safe to operate.
Two-way hydraulic cylinder enables fast loading, unloading and withdrawing.
Dust-proof: unique dust resistant unit protects ball screw from oxide coating.
Equipped with waste collecting cart, reduces working effort.
Small footprint saves space for testing.

Specification-

Capacity

200kN

Main cylinder travel

390mm

Rod specimen diameter

φ6mmφ40mm

Plate specimen thickness

6mm25mm

Plate specimen width

50mm

Max rotation

180°

Bend diameter

2.75,3.0,3.25,3.5,3.75,4.0,4.25,4.5,4.75,5.0,5.25,

5.5,5.75,6,8,10,12,14,16,18,20,24,28,30,32,36,

40,42,48,50,54,56,60,64,66,70,72,75,80,84,88,

90,98,100,110,112,120,126,128,140,154,160,168,

175,192(mm)and etc. 55 types in all. Customized.

Power supply

2.2kW/AC380V/50Hz

Frame dimensions

890mm×860mm×1970mm

Weight

Approx. 1000kg
