Bimetallic Strip Manufacturer,Supplier and Exporter in India
Product Code : JA-H-7990

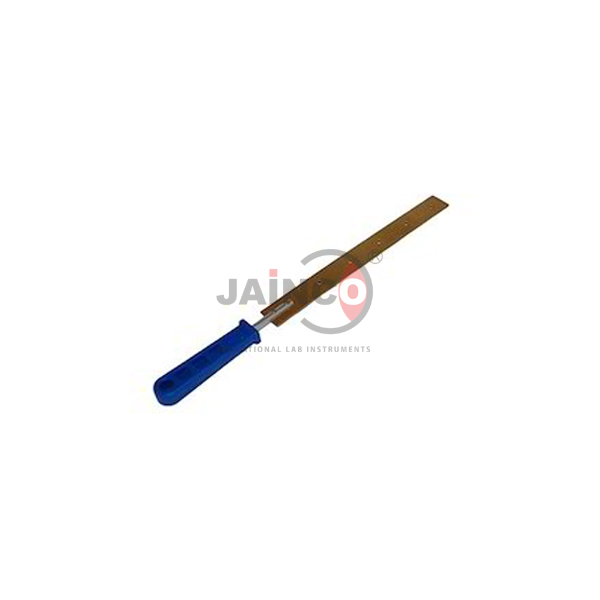

This bimetallic strip shows that two metals expand by different amounts when heated. A 200 x 15 mm strip of brass and steel is riveted together and set in a wooden handle. Held in a flame, the brass grows longer than the steel and the strip curves. It also helps explain how a thermostat works.
Specifications of the brass and steel bimetallic strip
| Product code | JA-H-7990 |
|---|---|
| Strip size | 200 x 15 mm |
| Metals | Brass and steel |
| Joining | Riveted with heat-resistant rivets |
| Handle | Wooden |
| Manufacturer | JaincoLab, Ambala, India |
Heat practicals with the bimetallic strip
- Showing differential expansion. Hold the strip by its handle and pass it through the flame of a Bunsen burner or a spirit lamp. Students note which metal ends up on the outside of the curve.
- Comparing expansion tests. Run it next to the ball and ring apparatus, so the class sees one metal expanding first and then two metals joined together.
- Modelling a thermostat. Clamp the handle so the tip of the strip rests on a metal contact in a simple lamp circuit. Warm the strip and the lamp goes out as the tip bends away.
Frequently Asked Questions
Which way does the strip bend when it is heated?
It curves with the brass on the outside of the bend and the steel on the inside. Brass expands more than steel for the same rise in temperature, so the brass side ends up longer.
What happens if the strip is cooled instead of heated?
It bends the other way. On cooling, the brass contracts more than the steel, so the brass ends up on the inside of the curve. Dip the strip in ice-cold water to show this.
Does the strip go straight again after the demonstration?
Yes. As it comes back to room temperature, both metals return to their first lengths and the strip straightens. Check that it is straight before each class, so the bending is easy to see.
How should the strip be heated?
Hold it by the wooden handle and move the metal slowly through the flame, so it warms evenly along its length. Take it out once the curve is clear. Long, strong heating only scorches the handle and discolours the metal.
How does a bimetallic strip work in a thermostat or fire alarm?
In a thermostat the strip is part of a circuit. As it warms it bends away from a contact and switches the heater off, then closes the circuit again as it cools. A fire alarm works the other way: heat bends the strip onto a contact and the bell rings.
Is the metal safe to touch straight after heating?
No. The strip stays hot for some time after it leaves the flame. Hold it only by the handle and rest the metal end on a heat-proof mat until it has cooled.
