Block Making Machine Manufacturer,Supplier and Exporter in India

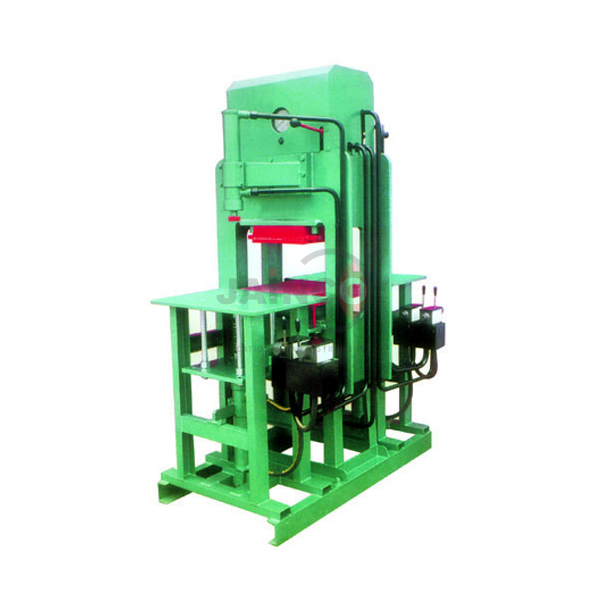

Block Making Machine

Product Code : JA-WT-8789

Block Making Machine
Specification:-
System- Hydraulic power compacting
Tonnage of Hydraulic Pressure- 100 ton
Total Power Required: 31.5 HP
In One Pallet- 4 brick will be done
Pallet Size- 600 x 300 x 25xmm (PVC type pallet)
Conveyor 20-foot length

Pan Mixer Specification:-
Side Wall Height: 500 mm
Bottom Plate: 10 mm
Side Wall Plate: 5 mm
Motor: 7.5 HP, 1480 rpm 3 phase

Capacity:-
No. of Bricks/Stroke: 4 bricks/stroke
Brick Size: 230 x 110 x 75 mm (with frog)
Production Capacity: 1680 bricks/hour (rated)
No. of Strokes/Hour: 420 strokes/hour (7 strokes/min)
