Constant Pressure System Oil Water Type Manufacturer,Supplier and Exporter in India
Product Code : JA-ST-9792

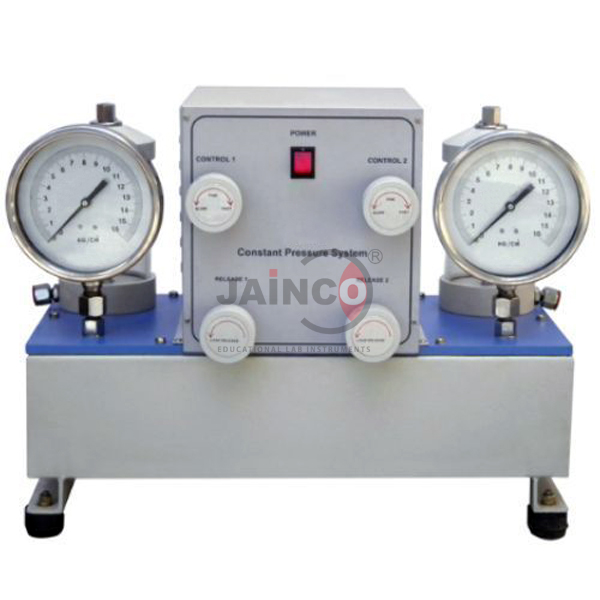

The Constant Pressure System, Oil Water Type (SKU JA-ST-9792) supplies a steady confining pressure to triaxial cells without the mercury or water column used in older constant pressure systems, which makes it practical where the laboratory lacks the head room those systems need. It is designed for up to 16 bar, factory-locked at a maximum of 12 kg/cm², and offered for one cell or two cells.
Specifications
Pressure ratings and models are as listed:
| Product | Constant Pressure System Oil Water Type |
| SKU | JA-ST-9792 |
| Function | Constant confining pressure to triaxial cells |
| Medium | Oil-water system (air-water model also listed) |
| Design pressure | Up to 16 bar |
| Maximum working pressure | Factory-locked at 12 kg/cm² |
| Models | Single cell; two cells; Air Water Constant Pressure System |
Where the oil-water constant pressure system is used
- Holding cell pressure during unconsolidated undrained and consolidated triaxial tests
- Laboratories where head room is too low for a mercury or water column system
- Running two triaxial cells at once with the two-cell model
Scope of supply and ordering
Choose the single-cell, two-cell or air-water model; the listing covers the pressure system for connection to your triaxial cells. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
What confining pressure does the system provide?
It is designed for confining pressures up to 16 bar but is factory-locked at a maximum of 12 kg/cm².
Why use an oil-water system instead of a mercury system?
It gives constant pressure without a mercury or water column, so it suits laboratories where head room is insufficient for those systems.
How many triaxial cells can it serve?
Single-cell and two-cell models are listed, along with an air-water constant pressure system.
Related products
Browse the full soil testing equipment range for related items.
Request a quote
To order the Constant Pressure System Oil Water Type, send the SKU JA-ST-9792, the quantity and the delivery destination through the JaincoLab contact page. For tender or project supply, see our tenders page.
