Conversion of Galvanometer Into a Voltmeter and Current Meter Manufacturer,Supplier and Exporter in India
Product Code : JA-VOVLACOS-1108
Jaincolab manufactures and exports the Conversion of Galvanometer Into a Voltmeter and Current Meter apparatus (Product Code JA-MSR-1108), a physics instrument built to demonstrate how a sensitive galvanometer can be converted into a working voltmeter and ammeter using series and shunt resistances. As a Scientific Instrument manufacturer and exporter based in Ambala, Haryana, Jaincolab supplies this apparatus to physics and electrical laboratories in schools, colleges and universities across India and internationally.

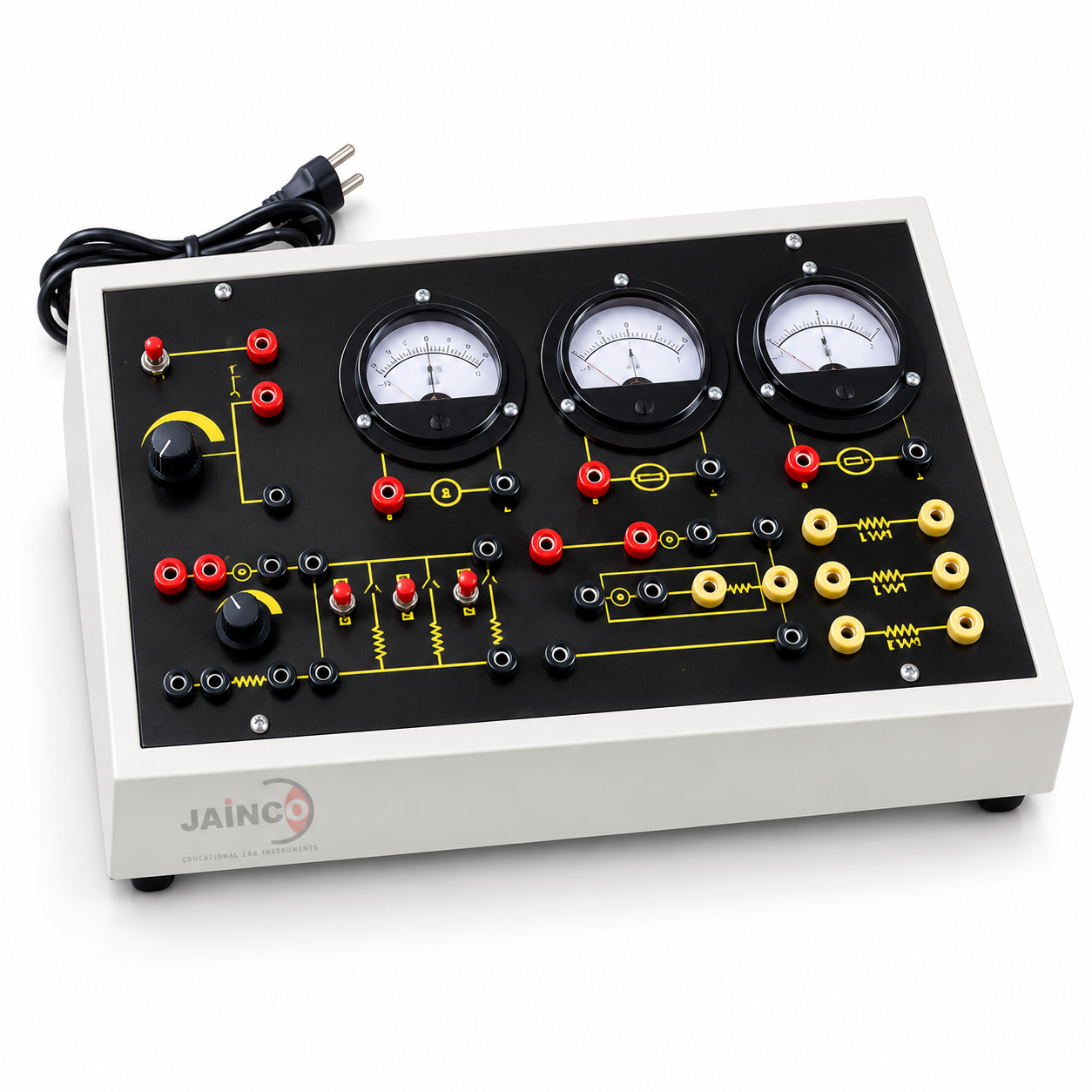

The instrument comprises a DC regulated power supply (0-10 VDC / 500 mA) and two round meters (one voltmeter and one galvanometer), along with three sets of resistances mounted on the panel. Connections for the power supply, meters and resistances are brought out on terminals, allowing students to wire the galvanometer with the appropriate resistance and verify its conversion into a voltmeter or a current meter. The apparatus measures 10"x8"x3".
Specifications
| Parameter | Specification |
|---|---|
| Product Code | JA-MSR-1108 |
| Power Supply | DC regulated power supply, 0-10 VDC / 500 mA |
| Meters | Two round meters: one voltmeter and one galvanometer |
| Resistances | Three sets of resistances mounted on the panel |
| Terminals | Connections for supply, meters & resistances brought on terminals |
| Overall Dimensions | 10" x 8" x 3" |
Key Features
- Demonstrates conversion of a galvanometer into a voltmeter and a current meter
- DC regulated power supply rated 0-10 VDC / 500 mA
- Two round meters: one voltmeter and one galvanometer
- Three sets of resistances mounted on the panel
- Terminal connections for supply, meters and resistances
- Bench-top design measuring 10" x 8" x 3"
Why Choose Jaincolab
Jaincolab (Jain Scientific Suppliers, Ambala, Haryana) manufactures and exports electrical and electronics measurement lab equipment for school, college and university laboratories across India and internationally. Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
Explore related Scientific Instrument equipment from Jaincolab:
- Resistances in Series and Parallel Apparatus
- Portable Wheatstone Bridge
- Charging and Discharging of Condenser Apparatus
- Scientific Instrument category
Applications
| Application Area | Typical Use |
|---|---|
| Physics/Electrical Laboratory | Demonstrating conversion of a galvanometer into a voltmeter (series resistance) and a current meter (shunt resistance) |
| Circuit Theory Teaching | Teaching meter conversion principles and internal resistance measurement |
| Educational Institutions | Undergraduate physics and electrical practicals in schools, colleges and universities |
Frequently Asked Questions
Q: What does this apparatus demonstrate?
A: It demonstrates how a galvanometer can be converted into a working voltmeter and current meter using appropriate resistances.
Q: What does the instrument include?
A: It includes a DC regulated power supply (0-10 VDC/500 mA), two round meters (a voltmeter and a galvanometer), and three sets of resistances mounted on the panel.
Q: How is the galvanometer converted into a voltmeter?
A: By connecting a suitable high resistance in series with the galvanometer using the panel-mounted resistances and terminals.
Q: What are the overall dimensions of the unit?
A: The unit measures 10" x 8" x 3".
Q: Is Jaincolab a certified manufacturer?
A: Jain Scientific Suppliers holds ISO 9001:2015 (quality management) and ISO 14001:2015 (environmental management) certification for its manufacturing operations.
