Diaphragm Pump Learning System Manufacturer,Supplier and Exporter in India
Product Code : JA-MWLE-9484

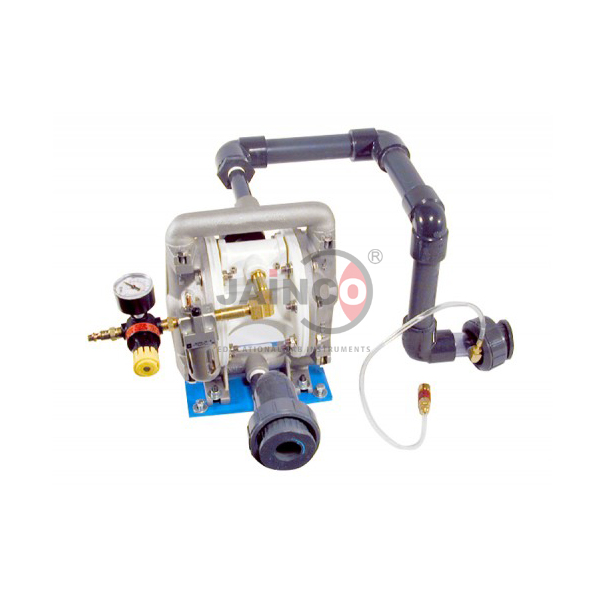

The Diaphragm Pump Learning System (SKU JA-MWLE-9484) is a pump training system built around a foot-mounted, air-operated diaphragm pump, the type used to move fluids that are viscous, corrosive, abrasive or hot. It is listed with an air regulator, an air lubricator, a pressure gauge, an air muffler and a piping network. The trainer explains the function, operation, application and types of diaphragm pumps. It is supplied by JaincoLab for maintenance and process technology training.
Specifications
The system consists of a foot-mounted air-operated diaphragm pump, air regulator, air lubricator, pressure gauge, air muffler and piping network; pump size, air consumption and dimensions are confirmed on the quotation.
| Product | Diaphragm Pump Learning System |
| SKU | JA-MWLE-9484 |
| Type | Diaphragm pump training system |
| Pump | Air-operated diaphragm pump, foot-mounted |
| Air preparation (as listed) | Air regulator, air lubricator, air muffler |
| Instrumentation | Pressure gauge |
| Piping | Piping network |
Applications of the air-operated diaphragm pump trainer
Learners connect the pump to the air supply through the regulator and lubricator, run it through the piping network and study how air pressure affects pump operation.
- Operating an air-operated diaphragm pump from a regulated air supply
- Studying air preparation with regulator, lubricator and muffler
- Understanding transfer of viscous, corrosive, abrasive or hot fluids
- Comparing diaphragm pumps with centrifugal and other pump types
- Process plant and maintenance technician training
Scope of supply and ordering
This listing covers the diaphragm pump learning system with the pump, air preparation components, pressure gauge and piping network. Accessories, spares and quantities are confirmed on the quotation. Curriculum material and fittings for the local air supply are also confirmed on the quotation.
MOQ, lead time and packing for the Diaphragm Pump Learning System are confirmed on each quotation for the quantity and delivery destination. Single units for one workshop and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
How is the pump driven?
It is an air-operated diaphragm pump, fed through an air regulator and air lubricator.
What fluids are diaphragm pumps used for?
Fluids that are too viscous, corrosive, abrasive or hot for other pump types.
What components are included?
The foot-mounted pump, air regulator, air lubricator, pressure gauge, air muffler and piping network.
