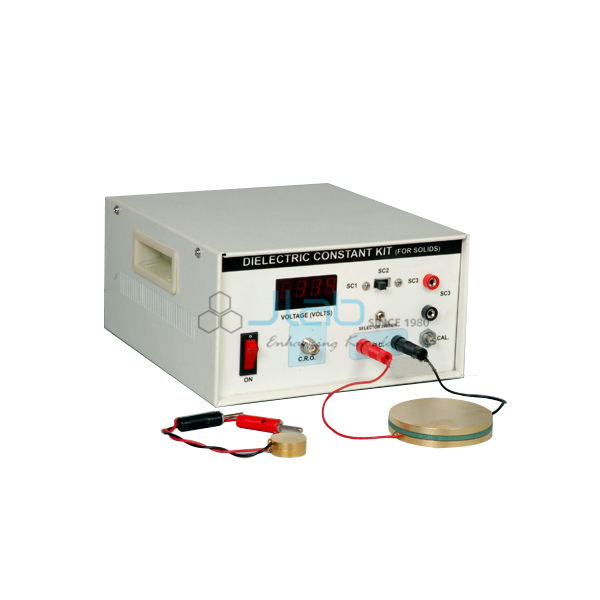

Dielectric Constant Kit

Product Code : JA-PLE-7948

Dielectric Constant Kit
A dielectric is a material having low electrical conductivity in comparison to that of a metal.
It is characterized by its dielectric constant.
Dielectric constant is measured as the ratio of the capacitance C of an electrical condenser filled with the dielectric to the capacitance C0 of the evacuated condenser i.e.

ε = C/C0

Knowledge of the dielectric constant is of interest, particularly to the Physicists and Engineers.
A simple experimental set up is designed to measure the dielectric constant of solid samples in both ranges- LOW HIGH.
The experimental set-up consists of :
1. The main Unit having audio oscillator (1 KHz), digital voltmeter (0 – 9.99 V dc), standard capacitance and electronic circuitry.
2. Samples: Low Range: Glass, Bakelite Hi Range: PZT DISC
3. Dielectric Cells: 75 mm Gold plated brass discs and 25 mm Gold plated brass discs.
