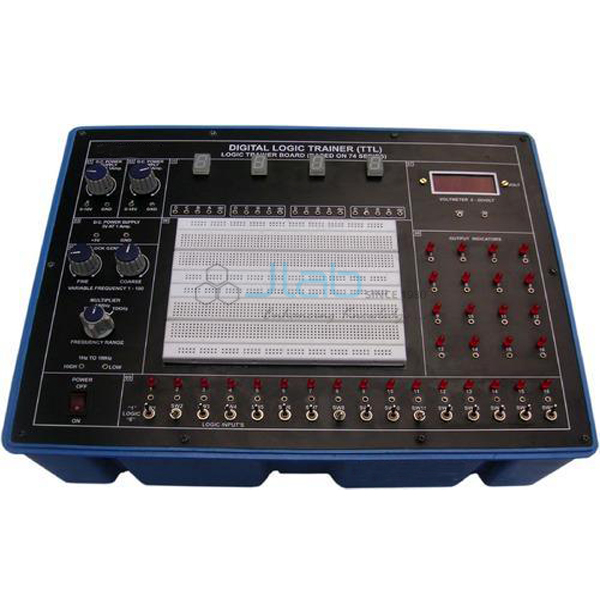

Digital Logic Trainer (TTL) and Logic Trainer Board

Specifications:

Output D.C. Voltage:

Fixed 5V and 0- ±18V

Output current:

1 Amp

Load regulation:

± 1% of the highest specified output voltage. (NO LOAD TO FULL LOAD)

Ripple and noise:

less than 2 mV

Variable clock frequency:

1 Hz to 1 MHz by three frequency range & multiplier

Logic inputs:

16 switches for High/Low

Output indicators:

16, 5 mm bright Red LEDs

Seven segment display:

4 digit seven segment display with decoder driver

Digital voltmeter:

Digital DC voltammeter range 0 - 20V

Operating conditions:

0 to 40°C and 95% R.H. at 40°C

Bread board:

Unique solder - less large size, spring loaded breadboard consisting of 2 Terminal Strips with 640 tie points each and 4 Distribution Strips with 100 tie points each, totalling to 1680 tie points

Input voltage:
