Digital Storage Oscilloscope 40MHz Manufacturer,Supplier and Exporter in India

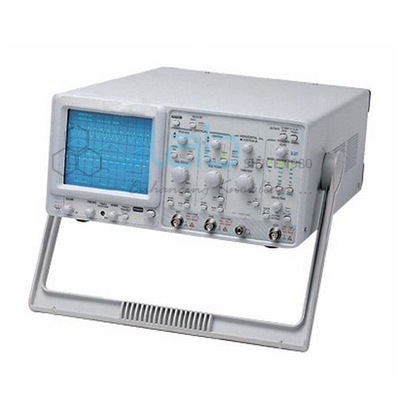

Digital Storage Oscilloscope 40MHz

Product Code : JA-DSO-1528

Digital Storage Oscilloscope 40MHz

Specifications :



17086

17070

17071

17072

17073

17074

Channels

2+Ext.Trigger



Bandwidth

25MHz

40MHz

60MHz

100MHz

150MHz

200MHz

Rising time

13.8ns

8.7ns

5.8ns

3.5ns

2.3ns

1.8ns

Time base

5ns to 50s/div

2ns to 50s/div

1ns to 50s/div

1ns to 50s/div



Real time sample rate

500MSa/s

1GSa/s



Equivalent sample rate

50GSa/s



Input impedance

1MW//13pF



Input coupling

DC, AC, GND



Trigger

Edge, video, pulse, delay



Acquisition modes

Auto, normal, single



Trigger sources

CH1, CH2, Ext, Ext/5, Ext(50Ù)



Horizontal accuracy

±0.01%



Vertical sensitivity

2 mV/div to 5V/div



Vertical resolution

8bit



Max. input voltage

400V(DC+AC peak),5Vrms@50Ù



Auto measurements

Vpp, Vamp, Vrms, Vmin, Vtop,Vbase,Vbase,Vavg,Freq,Period,Rise time




Fall time,+width,-width,overshoot,preshoot,+duty,-duty,etc



Math

+-x÷FFT
