Digital Voltmeter/Ammeter With Shunts Manufacturer,Supplier and Exporter in India
Product Code : JA-APE-7286

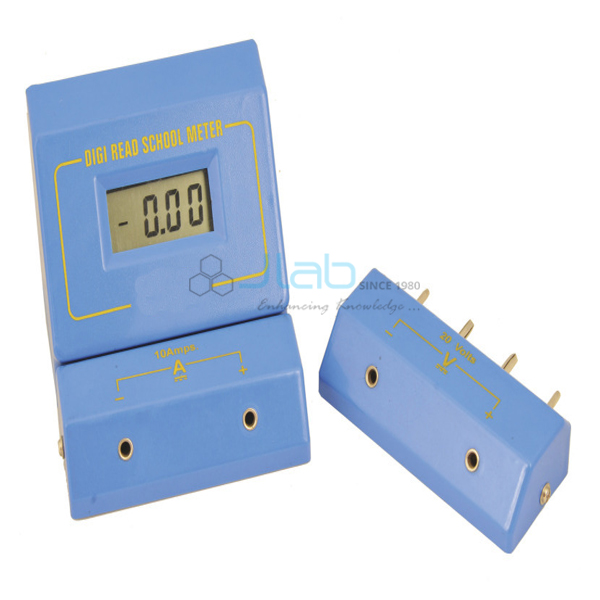

The Digital Voltmeter/Ammeter With Shunts (SKU JA-APE-7286) is a battery-powered digital meter that works as a DC ammeter or a DC voltmeter by fitting one of its two included attachments, 0-10 A DC and 0-20 V DC. It reads to a resolution of 0.01 with ±2% accuracy, has a 100 kohm input impedance and runs for over 1000 hours on a PP3 battery. This digital voltmeter and ammeter with shunts is suited to use with Tel-Tron Helmholtz coils in electron-beam experiments.
Specifications
The basic unit has a 100 kohm input impedance, 0.01 resolution and ±2% accuracy, is powered by a PP3 battery with a useful life of over 1000 hours, and comes with 0-10 A DC and 0-20 V DC attachments.
| Product | Digital Voltmeter/Ammeter With Shunts |
| SKU | JA-APE-7286 |
| Functions | DC ammeter or DC voltmeter |
| Attachments included | 0-10 A DC and 0-20 V DC |
| Resolution | 0.01 |
| Accuracy | ±2% |
| Input impedance | 100 kohm (basic unit) |
| Power | PP3 battery, useful life over 1000 hours |
| Suited to | Tel-Tron Helmholtz coils |
Applications of the digital voltmeter and ammeter with shunts
With the ammeter attachment the meter measures the coil current that sets the magnetic field of a Helmholtz pair, and with the voltmeter attachment it reads supply and circuit voltages, so one instrument covers both readings in electron-beam practicals.
- Measuring Helmholtz coil current in e/m and electron-deflection experiments
- Reading DC voltages up to 20 V in atomic physics set-ups
- General DC current measurement up to 10 A
- Battery-powered measurement away from mains outlets
- B.Sc, M.Sc and engineering physics laboratories
Scope of supply and ordering
The listing covers the digital meter with its 0-10 A DC and 0-20 V DC attachments and PP3 battery. Leads, coils and tubes are separate items.
Frequently asked questions
Can the meter measure both current and voltage?
Yes. It is supplied with a 0-10 A DC attachment for use as an ammeter and a 0-20 V DC attachment for use as a voltmeter.
What are the resolution and accuracy?
The resolution is 0.01 and the accuracy is ±2%.
How is it powered?
By a PP3 battery with a useful life of over 1000 hours.
