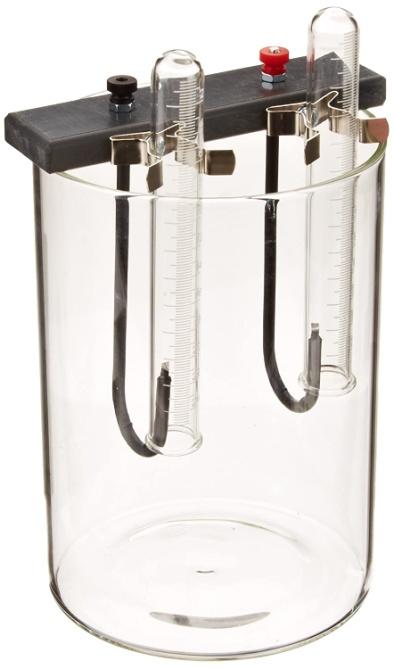

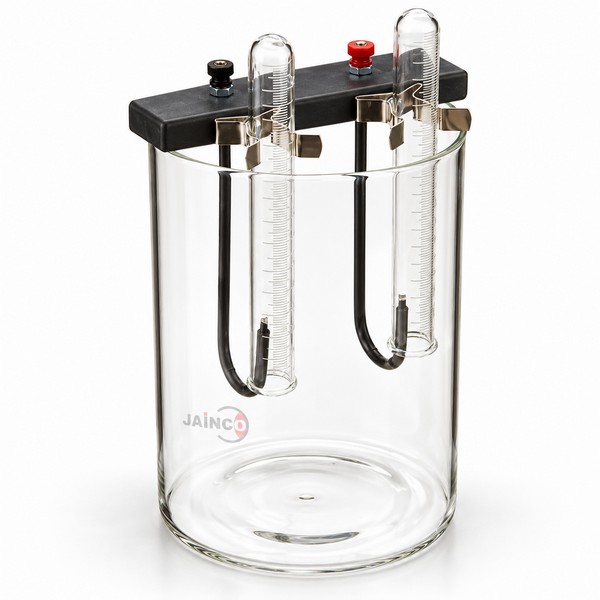

Electrolysis Apparatus Student Type Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10264
The Electrolysis Apparatus Student Type from Jaincolab, a trusted school laboratory equipment manufacturer, is used to demonstrate and describe the decomposition reactions at the electrodes during the electrolysis of water, producing a 1:2 ratio of hydrogen and oxygen gases respectively, by passing DC current through water.
A positive result is confirmed when an ember on a stick introduced to the test tube containing hydrogen gas pops, while the ember glows more brightly in the test tube containing oxygen gas. The set includes a borosilicate glass jar, platinum electrodes, two graduated test tubes and a complete power source with battery and connecting wires. As a leading school laboratory equipment manufacturer, Jaincolab supplies this electrolysis apparatus as per DEPED Guidelines to schools, colleges and laboratories across India and internationally.
Product Specifications
| Parameter | Details |
|---|---|
| Product Code | JL-LEP-10264 |
| Jar Shape | Cylindrical container with a flat bottom, wide mouth, and a small turned-out lip for pouring |
| Jar Material | Clear, transparent, bubble-free borosilicate glass |
| Jar Diameter | 4.5 in. (114 – 115 mm) (min) |
| Jar Height | 5.0 in. (127 – 128 mm) (min) |
| Jar Capacity | 1000 mL |
| Electrodes | Two (2), made of platinum |
| Insulating Support | Acid-proof, holds two binding posts (one red, one black) |
| Test Tube Holder | Two (2) spring clips |
| Test Tubes | Two (2), rimless, graduated from bottom (zero) to top, borosilicate clear bubble-free glass, 18 mm diameter, 150 mm long, 25 mL capacity, heavy uniform wall thickness, round bottom, permanent white enamel graduation |
| Power Source | 220 – 240 V AC input / 0 – 12 V DC output, with switch selector |
| Battery | 9 V battery with one (1) battery snap |
| Connecting Wires | Two (2), 1 red and 1 black, 12 in. length, stranded, 20 gauge |
| Guideline Compliance | As per DEPED Guidelines |
Key Features
- Demonstrates the electrolysis of water and the resulting decomposition reactions at the electrodes
- Produces hydrogen and oxygen gas in a 1:2 ratio for the classic pop and glow ember tests
- Cylindrical borosilicate glass jar with a 1000 mL capacity
- Two platinum electrodes with an acid-proof insulating support and binding posts
- Two graduated, rimless borosilicate test tubes with spring-clip holders
- Complete power source with 220-240 V AC input, 0-12 V DC output and a switch selector
- Includes a 9 V battery, battery snap and two stranded connecting wires
- Supplied as per DEPED Guidelines
Why Choose Jaincolab
Jaincolab is a trusted school laboratory equipment manufacturer and supplier of chemistry demonstration apparatus to schools, colleges and laboratories across India and internationally. Explore related chemistry essentials such as the Distilling Flask Borosilicate, the Double Burette Clamp, the Beaker Borosilicate 500 ml, and the Burner Bunsen, or browse the full Laboratory Equipment Products range.
Applications
| Application Area | Use Case |
|---|---|
| School Chemistry Labs | Demonstrating the electrolysis of water and decomposition reactions at the electrodes |
| Physical Science Demonstrations | Illustrating the 1:2 volume ratio of hydrogen to oxygen gas produced |
| Gas Identification Experiments | Performing the pop test for hydrogen and the glowing ember test for oxygen |
| General Laboratory Use | Teaching electrochemistry concepts with a complete, ready-to-use apparatus |
Frequently Asked Questions
Q1: What is the Electrolysis Apparatus Student Type used for?
A1: It is used to demonstrate and describe the decomposition reactions at the electrodes during the electrolysis of water, producing a 1:2 ratio of hydrogen and oxygen gases by passing DC current through water.
Q2: How is a positive result confirmed?
A2: An ember on a stick introduced to the test tube with hydrogen gas pops, while the ember glows more brightly in the test tube containing oxygen gas.
Q3: What is the jar made of and what is its capacity?
A3: The jar is made of clear, transparent, bubble-free borosilicate glass, with a minimum 4.5 in. diameter, a minimum 5.0 in. height, and a 1000 mL capacity.
Q4: What electrodes and test tubes are included?
A4: It includes two platinum electrodes with an acid-proof insulating support, and two graduated, rimless borosilicate test tubes of 25 mL capacity held by spring clips.
Q5: What power source does the apparatus use?
A5: It comes with a power source with 220-240 V AC input and 0-12 V DC output with a switch selector, a 9 V battery with a battery snap, and two stranded connecting wires.
