Force on a Conductor Apparatus Manufacturer,Supplier and Exporter in India
Product Code : JA-EE-7637

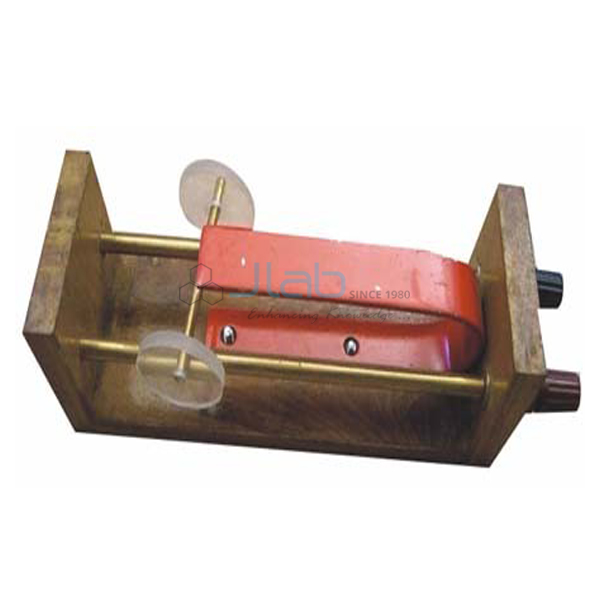

The Force on a Conductor Apparatus (product code JA-EE-7637) demonstrates the motor effect, the force on a current-carrying conductor in a magnetic field. The force on a conductor apparatus has a pair of brass rails with 4 mm socket terminals set between the poles of a U-shaped magnet, and a brass axle with plastic discs that rests across the rails. When current flows through the axle it rolls along the rails, and its direction follows Fleming's left-hand rule.
Specifications
The apparatus consists of a U-shaped magnet, two brass rails with 4 mm socket terminals and a brass axle fitted with plastic discs. The axle completes the electrical contact between the rails and is free to roll.
| Product | Force on a Conductor Apparatus |
| SKU / Product code | JA-EE-7637 |
| Magnet | U-shaped |
| Rails | Pair of brass rails with 4 mm socket terminals |
| Moving conductor | Brass axle with plastic discs, free to roll along the rails |
Applications of the force on a conductor apparatus
The apparatus lets students see the motor effect directly and test how the direction of motion depends on the current and the field.
- Demonstrating the motor effect in secondary school physics
- Verifying Fleming's left-hand rule by reversing current or magnet
- Relating the force to the current supplied
- Introducing the principle of the electric motor
Scope of supply and ordering
The listing covers one force on a conductor apparatus. Power supplies, leads, accessories, spares and quantities are confirmed on the quotation.
Frequently asked questions
What does the apparatus demonstrate?
The force on a current-carrying conductor in a magnetic field, known as the motor effect.
What power supply is needed?
A low-voltage, high-current supply such as the Electromagnetic Power Supply listed in the same category.
How are leads connected?
Through the 4 mm socket terminals on the brass rails.
Related products
Other electromagnetism equipment in the same category:
Browse the Electromagnetism Equipment category or the wider range from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Force on a Conductor Apparatus, send the number of units and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
