Hydraulic Steel Worker Manufacturer,Supplier and Exporter in India

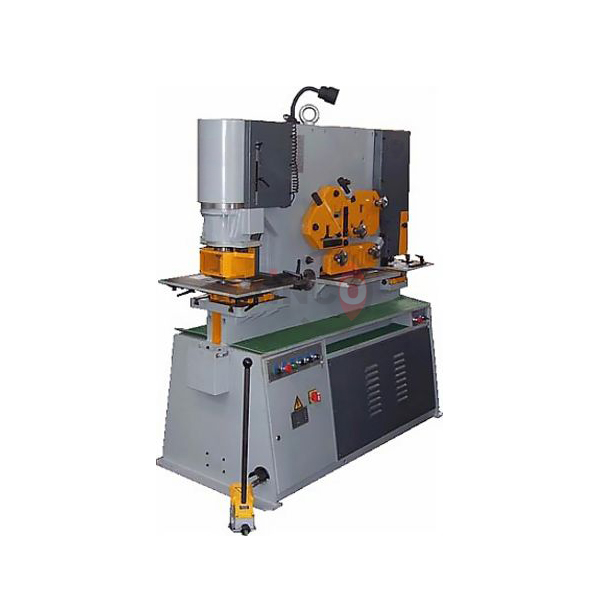

Hydraulic Steel Worker

Product Code : JA-WEAWLM-8728
Jainco Lab is a leading Hydraulic Steel Worker Manufacturer,and suppliers in India, Hydraulic Steel Worker Manufacturer,and suppliers in South Africa.Hydraulic Steel Worker Suppliers in Mozambique,Hydraulic Steel Worker A quality product from Jainco lab ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Hydraulic Steel Worker
Description:-
Quick change punch holder with positive keyway location for shaped tools.
Adjustable hold-down plate on the hole punching, shearing and bar cropping station.
CE conformity including Safety Guarding on all stations and key-switch to isolate the notch station.
Adjustable Strokes complete with rules at punch and shear end.
Swing-away punch stripper.
Universal 'Goose Neck' Die Holder up to 57 mm to accommodate punching of flats - angles - channel.
1M Auto Cut Length Stop Robust tables complete with rules - plate guides - quick release handles.
2 - hand moveable foot pedals.
Halogen Light on a magnetic base.
10 punches and dies up 0 to 38 mm.
Hydraulic and Electrical overload protection.
Toolkit and operator instruction manual.
Compact, low-maintenance, hydraulic unit located at the bottom inside of the machine.

Specification:-

Punching – Rated Capacity

60 Ton

80 Ton

Diameter × Thickness

27 × 16 mm

28 × 20 mm

Standard Throat Depth

310 mm

360 mm

Cycle/min (20mm stroke)

48 (24 cycle)

48 (24 cycle)

Shearing Flat bar – Max. Thickness

250 × 16 mm

330 × 16 mm

Shearing Flat bar – Max. Width

400 × 8 mm

480 × 12 mm

Angle Cutting 90º

125 × 12 mm

140 × 12 mm

Angle Cutting 45º

70 × 8 mm

80 × 8 mm

Section Cutting Round

max. 45 mm, 25 mm, 12 mm

max. 50 mm, 25 mm, 12 mm

Section Cutting Square

max. 40 × 40 mm, 20 × 20 mm

max. 50 × 50 mm, 20 × 20 mm

Notching Thickness

10 mm

13 mm

Notching Width

58 mm

57 mm

Notching Depth

105 mm

100 mm

Max. Sheet Bending (optional)

500 × 3 mm

500 × 3 mm

Motor Power

4 KW

5.5 KW

Net Weight (Std Throat)

1600 Kg

2450 Kg

Machine Dimensions (L × W × H)

1700 × 780 × 1680 mm

1920 × 790 × 1800 mm
