Instrumented Hoek Cells Manufacturer,Supplier and Exporter in India
Product Code : JA-ST-9810

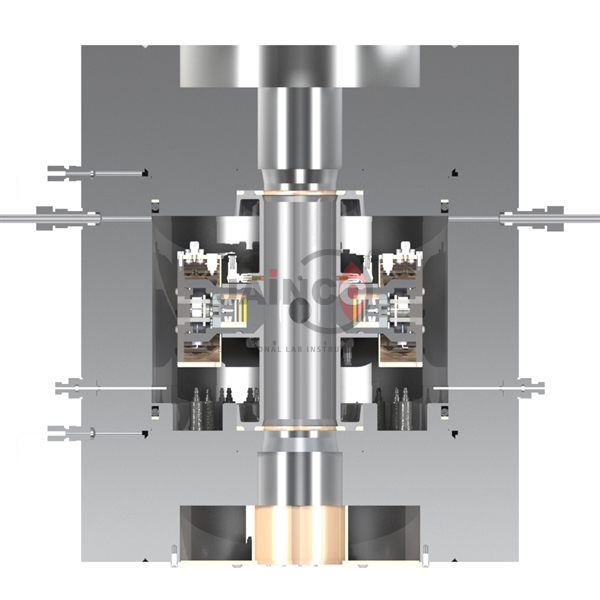

The Instrumented Hoek Cells (SKU JA-ST-9810) are a research version of the traditional Hoek cell for triaxial testing of rock cores. They can be fully instrumented, bringing the measurements of a high-pressure triaxial cell to the compact, simple Hoek-Franklin format. They are rated for 70 MPa cell pressure and loads up to 2 MN, and are supplied by JaincoLab.
Specifications
Cell data:
| Product | Instrumented Hoek Cells |
| SKU | JA-ST-9810 |
| Type | Instrumented Hoek-Franklin type triaxial cell |
| Cell pressure | 70 MPa |
| Maximum load | Up to 2 MN |
| Core diameter and instrumentation | Confirmed on the quotation |
Scope of supply and ordering
State the rock core diameter and the instrumentation needed; the cells are quoted to that specification. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
What pressure and load are the cells rated for?
The cells are rated for 70 MPa cell pressure and loads of up to 2 MN.
How do they differ from a traditional Hoek cell?
They can be fully instrumented, adding the measurement options of a high-pressure triaxial cell while keeping the compact size and simple handling of a Hoek-Franklin type cell.
Related products
Related items are grouped in the JaincoLab soil testing equipment range.
Request a quote
Ask for the price of the Instrumented Hoek Cells by quoting SKU JA-ST-9810 on the JaincoLab contact page. Buying under a laboratory tender? Use our tenders page.
