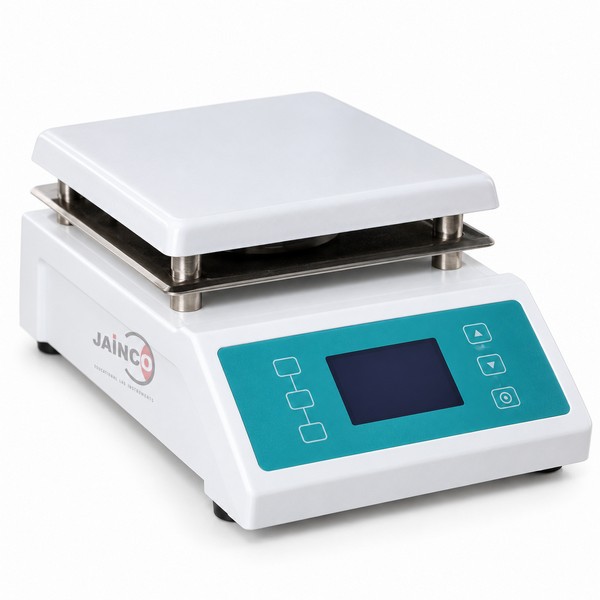

Laboratory Hot Plate with Magnetic Stirrer Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10396
The Laboratory Hot Plate with Magnetic Stirrer from Jaincolab is used to heat samples, glassware and their contents, solutions and substances, with constant stirring. As a school laboratory equipment manufacturer, Jaincolab supplies this digital hot plate stirrer as part of a wider range of chemistry lab equipment used for heating, mixing and sterilizing in schools and colleges across India. With precise temperature control up to 380°C, stirring speeds up to 1500 rpm and an external temperature probe, it is built for reliable, repeated laboratory bench use.
Specification Detail
| Product Name | Laboratory Hot Plate with Magnetic Stirrer |
| Product Code / SKU | JL-LEP-10396 |
| Purpose | Heats samples, glassware, solutions and substances with constant stirring; boils water, sterilizes glassware, dissolves buffers and reagents, prepares media and concentrates samples |
| Type | Digital |
| Top Plate | Ceramic-coated aluminum, chemical/acid resistant, white, 180mm x 180mm (min) |
| Body | Powder-coated cast aluminum, midnight blue; Length 206mm x Width 307mm x Height 99mm |
| Maximum Operating Temperature | 380°C, temperature accuracy ±0.3°C at set temperature |
| Stirring Capacity | 20 Liters; speed range 80-1500 rpm; control resolution 5 rpm |
| Temperature Resolution | 0.1°C display, 0.5°C control; heating module uniformity within 10% difference |
| Heating Power | 600W heating consumption; overall power 220-240V AC, 50/60Hz, 800W |
| Display and Controls | Digital LCD with backlight, joggle shuttle switch (turn + push), quick adjustment knob, safety LEDs |
| Stirring Bar | 3 cm bar included, usable up to 5 cm bar |
| Support Rod | Built-in mount with thumbscrew, accommodates rods up to 13mm dia; stainless steel stand rod, 12mm dia x 450mm length |
| Temperature Probe | External direct-contact probe, 4mm diameter, 250mm length, with holder/clamp and LED indicator |
| Safety | Over-temperature protection, safety LEDs indicating active heating |
| Standard | As per DEPED Guidelines (manufacturer-stated) |
Key Features
- Digital hot plate with magnetic stirrer heats and mixes samples up to 380°C with ±0.3°C accuracy
- Stirring speed adjustable from 80 to 1500 rpm across a 20 liter capacity for varied laboratory volumes
- Ceramic-coated, chemical and acid resistant top plate suited to repeated chemistry laboratory use
- External direct-contact temperature probe with holder and LED indicator for precise sample monitoring
- Built-in support rod mount and stainless steel stand rod for clamps, condensers and other accessories
- Over-temperature protection and safety LEDs support safe, unattended heating and stirring runs
Why Choose Jaincolab
Jaincolab is a school laboratory equipment manufacturer and exporter supplying schools, colleges and institutions across India and internationally. Every Laboratory Hot Plate with Magnetic Stirrer is checked for heating and stirring function before dispatch. As specialists in chemistry lab equipment and solution-preparation apparatus, we supply this unit alongside related classroom resources including the Electrical Conductivity Apparatus and the Safety Goggles Polycarbonate, so schools can standardise on one trusted source of science teaching equipment. Browse our full Laboratory Equipment Products collection for the complete range.
Certifications: manufacturer-stated ISO 9001:2015 and ISO 14001:2015 — verify before publishing.
Applications
| Application | Use Case |
|---|---|
| Solution Preparation and Dissolving | Dissolving buffers and reagents with constant stirring for accurate solution preparation |
| Media Preparation | Preparing culture media and other laboratory formulations requiring controlled heat and mixing |
| Glassware Sterilization | Sterilizing glassware and other materials uniformly through controlled heating |
| Sample Concentration | Concentrating samples and preparing chemicals used in scientific research |
| Chemistry Laboratory Demonstrations | Classroom apparatus support for heating and mixing demonstrations |
Frequently Asked Questions
Q1: What is this hot plate used for?
A1: It is used to heat samples, glassware, solutions and substances with constant stirring.
Q2: What is the maximum temperature?
A2: It reaches a maximum operating temperature of 380°C, with an accuracy of ±0.3°C at the set temperature.
Q3: What stirring speeds does it offer?
A3: It offers a stirring speed range of 80 to 1500 rpm with a control resolution of 5 rpm.
Q4: Does it include a temperature probe?
A4: Yes, it includes an external direct-contact temperature probe with a holder and LED indicator.
Q5: What safety features does it have?
A5: It has over-temperature protection and safety LEDs that indicate when the heating function is active.
