Model of Cochran Boiler Manufacturer,Supplier and Exporter in India
Product Code : JA-AM-6080

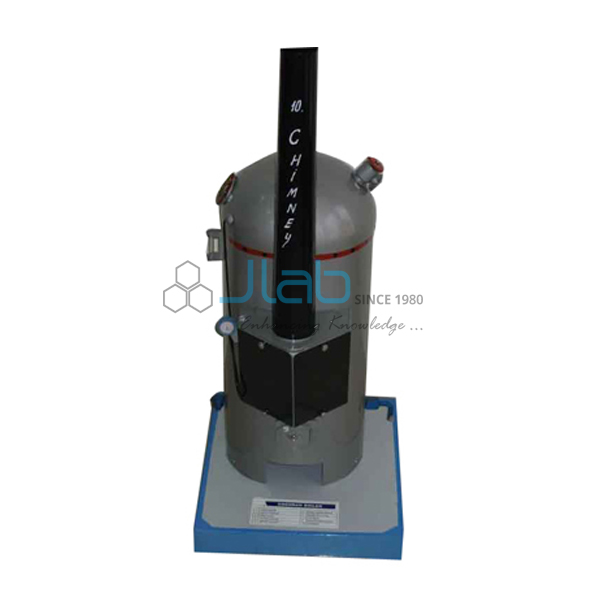

The Model of Cochran Boiler (SKU JA-AM-6080) represents the Cochran boiler, a widely taught vertical fire tube boiler. The Cochran boiler model has a shell about 25 cm in diameter and 60 cm high, with a cylindrical fire box, door and grate at the bottom, and it is complete with the boiler mountings. JaincoLab makes it for thermal engineering classes in polytechnics, engineering colleges and ITIs.
Specifications
The Model of Cochran Boiler has a shell about 25 cm in diameter and 60 cm high, a fire box with door and grate, a flue pipe to the combustion chamber, removable fire tubes and a full set of boiler mountings.
| Product | Model of Cochran Boiler |
| SKU | JA-AM-6080 |
| Boiler type | Vertical fire tube (Cochran) |
| Shell size | About 25 cm diameter x 60 cm high |
| Fire box | Cylindrical, with door and grate at the bottom |
| Gas path | Fuel to combustion chamber through a short flue pipe, then through the tubes to the chimney |
| Tubes | End covers; tubes removable for cleaning |
| Mountings | Feed check valve; steam and water gauges; stop valve; safety valve; manhole |
Applications of the Cochran boiler model
The Cochran boiler model is used to explain how a vertical fire tube boiler works, tracing the hot gases from the grate through the combustion chamber and tubes and naming each mounting fitted to the shell.
- Diploma and degree thermal engineering lessons on boilers
- ITI boiler attendant and fitter trade theory
- Comparison of fire tube and water tube boiler designs
- Identification of boiler mountings in viva and practical tests
Scope of supply
The listing covers one Model of Cochran Boiler with the mountings listed above. It is a teaching model only. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Packing, minimum order quantity and lead time for the Model of Cochran Boiler are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies single units as well as bulk orders for polytechnics, engineering colleges and ITIs.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
What type of boiler does the model show?
A Cochran vertical fire tube boiler.
What is the size of the model?
The shell is about 25 cm in diameter and 60 cm high.
Which mountings are included?
Feed check valve, steam and water gauges, stop valve, safety valve and manhole.
What should I send for a quote?
Send the SKU JA-AM-6080, the quantity and the delivery destination.
Related products
- Model of Lancashire Boiler
- Model of Locomotive Boiler
- Model of Babcock and Wilcox Boiler
- Vertical Water Tube Boiler
See the anatomical models equipment range for related items, and the engineering lab equipment manufacturer in India page for the complete range.
Request a quote
To order the Model of Cochran Boiler, send the quantity and delivery destination through the JaincoLab contact page or email [email protected].
