Newton Ring Microscope Manufacturer,Supplier and Exporter in India
Product Code : JA-PWL-9181

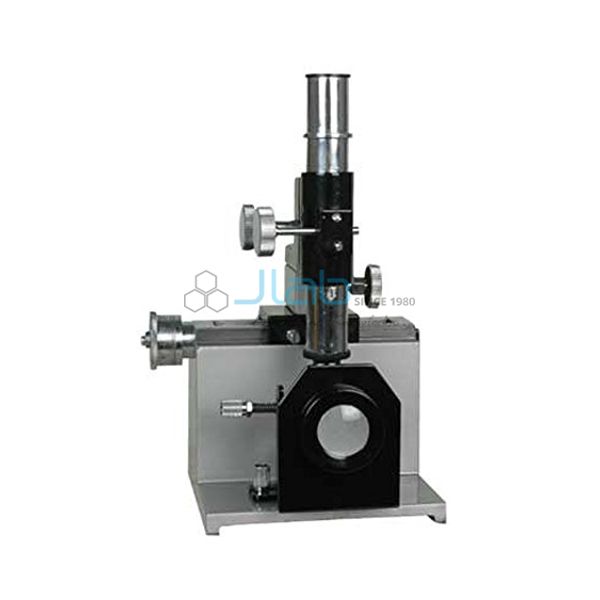

The Newton Ring Microscope (SKU JA-PWL-9181) is a travelling microscope set-up for the Newton's rings experiment, used to measure the wavelength of light or the radius of curvature of a lens. It has a 30x microscope with a rotatable cross-line eyepiece, rack and pinion focusing and a 26 mm longitudinal movement read on a drum to 0.001 cm, with the optical glass plate and convex lens held in a metal case. JaincoLab manufactures this Newton's rings apparatus in India for school and college physics laboratories.
Specifications
The instrument has a 30x microscope with rotatable cross-line eyepiece, rack and pinion focusing, 26 mm longitudinal travel with a drum reading to 0.001 cm, and a metal case holding the optical glass plate and convex lens.
| Product | Newton Ring Microscope |
| SKU | JA-PWL-9181 |
| Microscope | 30x, rotatable cross-line eyepiece |
| Focusing | Rack and pinion |
| Longitudinal movement | 26 mm, by drum |
| Drum reading | 0.001 cm |
| Optics | Optical glass plate and convex lens in a metal case |
Experiments with the Newton's rings microscope
Students view the rings formed between the lens and glass plate, set the cross-line on successive dark rings using the drum and calculate the wavelength or the radius of curvature from the ring diameters.
- Wavelength of sodium light by Newton's rings
- Radius of curvature of a plano-convex lens
- Refractive index of a liquid between lens and plate
- Interference in thin films
- Optics practicals in Class 12, B.Sc and engineering physics
Scope of supply and ordering
This listing covers the Newton's rings microscope with lens and glass plate in the metal case. Accessories, spares and quantities are confirmed on the quotation. Sodium lamp and power supply are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Newton Ring Microscope are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What is the microscope magnification?
30x, with a rotatable cross-line eyepiece.
What is the reading accuracy?
The drum reads to 0.001 cm over a 26 mm longitudinal movement.
Are the lens and plate included?
Yes, the optical glass plate and convex lens come in a metal case.
