Resonance Tube Set Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10428

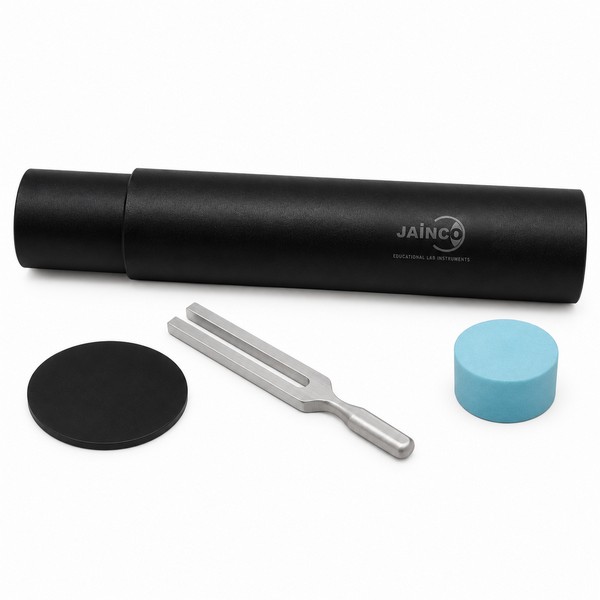

The Resonance Tube Set from Jaincolab is used to vary the length of an air column to produce resonance of sound coming from a loudspeaker. As a school laboratory equipment manufacturer, Jaincolab supplies this telescoping tube set as part of a wider range of physics lab equipment used for teaching sound and resonance in schools and colleges across India. The sliding inner and outer tube assembly, marked with a millimetre scale, lets students find the wavelength of sound in air using tuning forks or a loudspeaker as the source.
Specification Detail
| Product Name | Resonance Tube Set |
| Product Code / SKU | JL-LEP-10428 |
| Purpose | Varies the length of an air column to produce resonance of sound from a loudspeaker |
| Working Principle | Telescoping tubes used to find the wavelength in air for tuning forks and other sound sources such as a loudspeaker |
| Inner Tube Stopper | Plastic stopper fixed on one end of the inner tube |
| Outer Tube | OD 63 mm (-0.5 mm to +2 mm), 1030 mm long minimum, with a detachable rubber plug on the free end for safe transport of the assembly |
| Inner Tube | OD 50 mm, 1100 mm long, with permanent mm-scale graduation at 1 mm divisions and felt-cloth air sealing |
| Graduation Durability | Print resists rubbing, with no sign of fade after 100 slides |
| Stand | Rigid and stable, aligning the effective height of the outer tube with a loudspeaker cone |
| Mounted Height | Centre of outer tube elevated 52 mm from the surface, including stand |
| Standard | As per DEPED Guidelines (manufacturer-stated) |
Key Features
- Telescoping inner and outer resonance tube assembly for finding the wavelength of sound in air
- Permanent mm-scale graduation at 1 mm divisions, durable enough to resist fading after 100 slides
- Felt-cloth air sealing on the inner tube for a consistent, repeatable air column length
- Rigid stand holds the outer tube at 52 mm height, aligned to match a loudspeaker cone
- Detachable rubber plug on the outer tube protects the assembly during transport and storage
Why Choose Jaincolab
Jaincolab is a school laboratory equipment manufacturer and exporter supplying schools, colleges and institutions across India and internationally. Every Resonance Tube Set is checked for smooth sliding action and accurate graduation before dispatch. As specialists in physics lab equipment for sound and resonance, we supply this tube set alongside related classroom resources including the Loud Speaker and the Set of Connectors Yellow, so schools can standardise on one trusted source of science teaching equipment. Browse our full Laboratory Equipment Products collection for the complete range.
Certifications: manufacturer-stated ISO 9001:2015 and ISO 14001:2015 — verify before publishing.
Applications
| Application | Use Case |
|---|---|
| Wavelength of Sound Experiments | Finding the wavelength of sound in air using tuning forks or a loudspeaker |
| Speed of Sound Investigations | Combining resonance length and frequency readings to calculate the speed of sound |
| Sound and Waves Curriculum | Supporting curriculum topics on resonance, wavelength and frequency |
| Tuning Fork Demonstrations | Pairing with tuning forks to demonstrate resonance at specific frequencies |
| General Acoustics Demonstrations | Providing a graduated, adjustable air column for classroom acoustics activities |
Frequently Asked Questions
Q1: What is the Resonance Tube Set used for?
A1: It is used to vary the length of an air column to produce resonance of sound coming from a loudspeaker.
Q2: How is the wavelength of sound found?
A2: The telescoping tubes are used to find the wavelength in air for tuning forks and other sound sources such as a loudspeaker.
Q3: What are the tube dimensions?
A3: The outer tube is 63 mm OD (-0.5 mm to +2 mm) and 1030 mm long minimum; the inner tube is 50 mm OD and 1100 mm long.
Q4: How is the air column sealed?
A4: The inner tube uses a good quality felt-cloth air sealing material for a consistent air column.
Q5: Does it meet an educational standard?
A5: Yes, it is supplied as per DEPED Guidelines (manufacturer-stated).
