Robotic Total Station Manufacturer,Supplier and Exporter in India
Product Code : JA-SE-8842

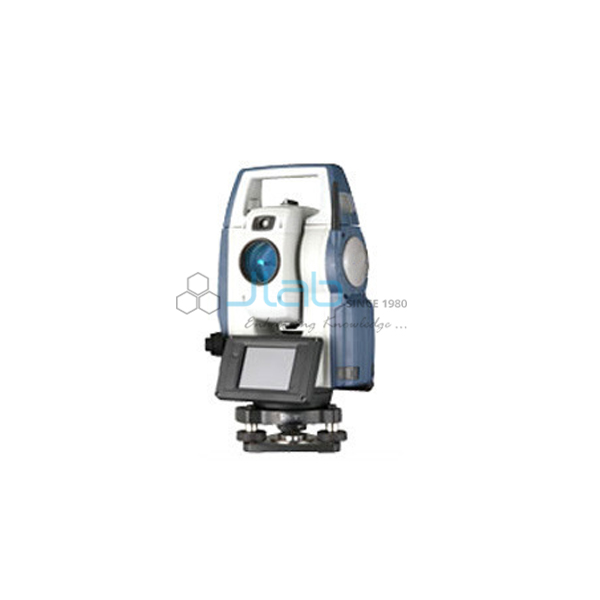

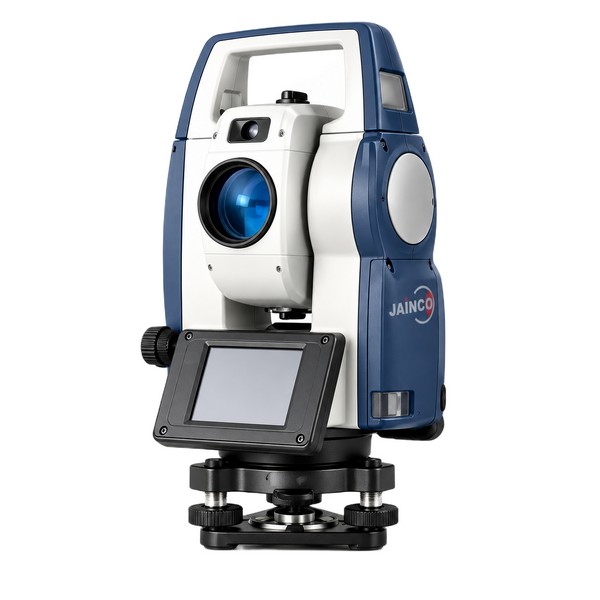

The robotic total station (SKU JA-SE-8842) is an electronic surveying instrument with auto-pointing, direct-aiming technology that automatically aims at the prism and gives accurate angle readings. It has a 30x telescope, a maximum rotation speed of about 70 degrees per second and a waterproof, strong construction. It is supplied by JaincoLab for advanced surveying laboratories, construction projects and survey teams.
Specifications
The robotic total station has a 30x telescope with 2.5 second resolving power, 168 mm length, 45 mm objective aperture (50 mm for the EDM), erect image, 1 degree 30 minute field of view and 1.3 m minimum focus; maker, model and EDM range are confirmed on the quotation.
| Product | Robotic Total Station |
| SKU | JA-SE-8842 |
| Aiming | Auto-pointing, direct aiming at the prism |
| Telescope | Magnification 30x; resolving power 2.5 seconds; length 168 mm (6.6 in) |
| Objective aperture | 45 mm (1.8 in); 50 mm (2.0 in) for EDM |
| Image | Erect |
| Field of view | 1 degree 30 minutes (26 m at 1,000 m) |
| Minimum focus | 1.3 m (4.3 ft) |
| Reticle illumination | 5 brightness levels |
| Max. rotation speed | 70 degrees per second |
| Operating temperature | -20 to +50 °C |
| Construction | Waterproof, strong |
| Maker, model and EDM range | Confirmed on the quotation |
Applications of the robotic total station
The robotic total station finds and follows the prism automatically, so a single operator can carry out traverses, detail surveys and stake-out from the prism pole, which saves time on site and in advanced surveying practicals.
- One-person detail and topographic surveys
- Setting out and stake-out on construction sites
- Traverse and control surveys
- Monitoring surveys with repeated measurements
- Advanced surveying practicals and survey camps
Scope of supply and ordering
The listing covers the robotic total station instrument. The maker and model, EDM range, controller, prism, tripod, batteries, charger, case and software are not given in the product data; these, with quantities, are confirmed on the quotation.
MOQ, lead time and packing for the robotic total station are confirmed on each quotation for the model, quantity and delivery destination. Single instruments for departments and multiple units for projects are supplied, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How does the robotic total station aim at the prism?
It uses auto-pointing, direct-aiming technology with an algorithm that aims at the prism automatically.
What are the telescope specifications?
30x magnification, 2.5 second resolving power, 45 mm objective (50 mm for EDM), erect image and 1.3 m minimum focus.
What temperature range does it work in?
-20 to +50 °C, in a waterproof, strong body.
Related products
Other survey instruments are listed in the JaincoLab survey equipment range.
Request a quote
To order the robotic total station, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
