Seismograph Model Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10307

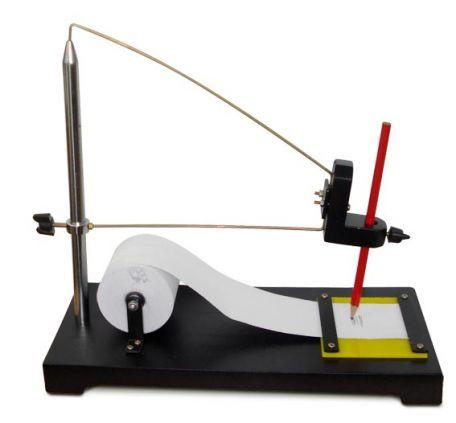

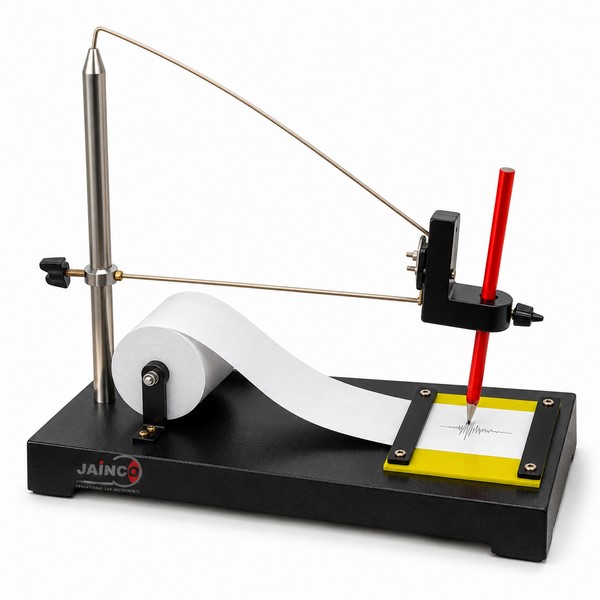

The Seismograph Model from Jaincolab, a trusted school laboratory equipment manufacturer, is used to demonstrate how a seismograph records earthquakes and their comparative strengths.
It demonstrates the basic components and principles of operation of an actual seismograph unit, with a recording pen attached to a suspended weight that traces vibrations onto recording paper as it is manually pulled through a metal frame. As a leading school laboratory equipment manufacturer, Jaincolab supplies this model as per DEPED Guidelines to schools, colleges and laboratories across India and internationally.
Product Specifications
| Parameter | Details |
|---|---|
| Product Code | JL-LEP-10307 |
| Working Principle | The recording pen is attached to a weight suspended from a support connected to a metal base stand |
| Recording Action | The support moves with vibrations and the pen records on recording paper as it is manually pulled through a metal frame |
| Earthquake Simulation | Earthquakes are simulated by vibrating the table on which the model is mounted |
| Recording Paper | Roll of recording paper, 65mm wide, with mounting |
| Set Components | Recording pens, suspended weight, support with painted metal base stand, recording frame, and table clamp (opening 65mm) |
| Stand Rod | Metal stand rod, 325mm long, chrome-plated |
| Support | Metal support, chrome-plated |
| Recording Frame Material | Galvanized iron sheet |
| Base Dimensions | 295mm x 155mm x 25mm (minimum) |
| Guideline Compliance | As per DEPED Guidelines |
Key Features
- Demonstrates how a seismograph records earthquakes and their comparative strengths
- Demonstrates the basic components and principles of operation of an actual seismograph unit
- Recording pen attached to a suspended weight traces vibrations onto recording paper
- Earthquakes simulated by vibrating the table on which the model is mounted
- Includes a 65mm-wide roll of recording paper with mounting, recording pens, suspended weight, support, recording frame and table clamp (opening 65mm)
- Chrome-plated 325mm metal stand rod and support, with a recording frame in galvanized iron sheet
- Base dimensions of 295mm x 155mm x 25mm (minimum)
- Supplied as per DEPED Guidelines
Why Choose Jaincolab
Jaincolab is a trusted school laboratory equipment manufacturer and supplier of earth science and geography teaching aids to schools, colleges and laboratories across India and internationally. Explore related essentials such as the Earth Internal Structure Model, the Landform Demonstration Kit, or browse the full Laboratory Equipment Products range for more classroom demonstration models.
Applications
| Application Area | Use Case |
|---|---|
| Earth Science Classrooms | Demonstrating how a seismograph records earthquakes and their comparative strengths |
| Seismology Lessons | Explaining the basic components and principles of operation of an actual seismograph unit |
| Earthquake Simulation Activities | Vibrating the mounting table to simulate earthquakes and observe the recorded traces |
| Instrumentation Demonstrations | Pulling recording paper through the metal frame to show real-time vibration recording |
Frequently Asked Questions
Q1: What is the Seismograph Model used for?
A1: It is used to demonstrate how a seismograph records earthquakes and their comparative strengths.
Q2: How does the recording mechanism work?
A2: The recording pen is attached to a weight suspended from a support connected to a metal base stand; the support moves with vibrations and the pen records on recording paper as it is manually pulled through a metal frame.
Q3: How are earthquakes simulated?
A3: Earthquakes are simulated by vibrating the table on which the model is mounted.
Q4: What does the set include?
A4: It includes a 65mm-wide roll of recording paper with mounting, recording pens, suspended weight, support with a painted metal base stand, recording frame, and table clamp (opening 65mm).
Q5: What are the base dimensions of the model?
A5: The base dimensions are 295mm x 155mm x 25mm (minimum).
Request a Quote
For pricing, bulk orders or custom requirements on the Seismograph Model or any other earth science teaching aid from Jaincolab, Request a Quote from our team.
