Statics and Vibrations Manufacturer,Supplier and Exporter in India
Product Code : JA-MWLE-9475

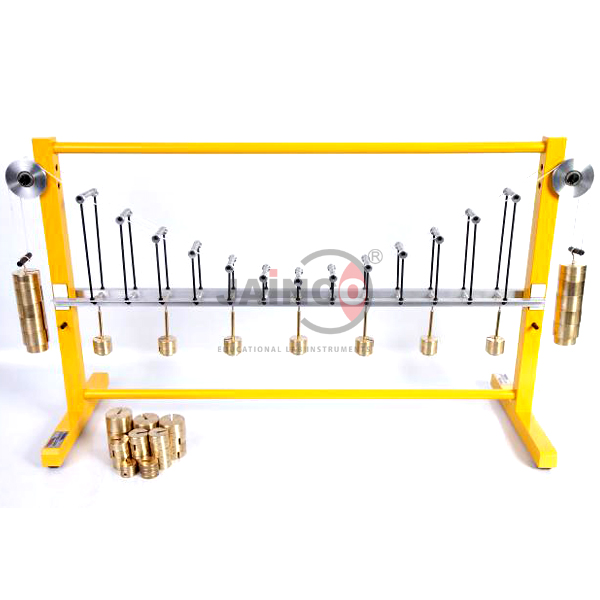

The Statics and Vibrations apparatus (SKU JA-MWLE-9475), as described in its listing, is a suspended-beam experiment for engineering mechanics laboratories. A light alloy beam hangs on rods pivoted to cross members that are threaded on supporting cables, and the cables pass over ball bearing pulleys. Masses hung on the cable stirrups set the cable tension, and further masses load the beam at a series of points. This suspended beam apparatus is supplied by JaincoLab for diploma and degree engineering courses.
Specifications
The apparatus consists of a light alloy beam supported by rods pivoted to cross members on the supporting cables, ball bearing pulleys, cable stirrups for tensioning masses, a series of loading points and indicators for returning the beam to its reference position; dimensions and the mass set are confirmed on the quotation.
| Product | Statics and Vibrations |
| SKU | JA-MWLE-9475 |
| Type | Suspended beam apparatus (statics) |
| Beam | Light alloy, supported on rods at pivot points |
| Supporting cables | Pass over ball bearing pulleys; tension set by masses on cable stirrups |
| Loading | Masses attached at a series of loading points |
| Indicators | Return the beam to the reference position for the true cable shape |
Experiments with the suspended beam apparatus
Students load the beam, restore it to its reference position using the indicators and read the cable tension from the hanging masses, then compare the result with the calculated value.
- Experimental determination of the tension in cables supporting a beam
- Beam carrying a series of distributed loads
- Comparing measured cable tensions with statics calculations
- Studying the shape taken by a loaded supporting cable
- Engineering mechanics practicals in diploma and B.Tech/B.E. courses
Scope of supply and ordering
This listing covers the suspended beam apparatus as described, with beam, cables, pulleys, stirrups and indicators. Accessories, spares and quantities are confirmed on the quotation. The mass set, dimensions and any vibration accessories implied by the product name are also confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Statics and Vibrations can be ordered for a single training workshop or as part of a complete workshop package for a college or skills programme.
Frequently asked questions
What does the apparatus demonstrate?
The tension in cables supporting a beam that carries a series of distributed loads, found experimentally.
How is the cable tension measured?
Masses are hung on the cable stirrups until the beam returns to its reference position, shown by the indicators.
Does the listing include vibration experiments?
The listing describes only the suspended beam; any vibration accessories are confirmed on the quotation.
