Tablet Dissolution Test Apparatus

Product Code : JA-DTA-2212
Jaincolab is a leading Tablet Dissolution Test Apparatus Manufacturer,and suppliers in India, Tablet Dissolution Test Apparatus Manufacturer,and suppliers in South Africa, Tablet Dissolution Test Apparatus Algeria (Algiers), Tablet Dissolution Test Apparatus Angola (Luanda), Tablet Dissolution Test Apparatus Argentina (Buenos Aires), Tablet Dissolution Test Apparatus Armenia (Yerevan), Tablet Dissolution Test Apparatus Australia (Canberra), Tablet Dissolution Test Apparatus Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Tablet Dissolution Test Apparatus


Extremely useful for pharmaceutical labs

Highly accurate and easy to operate

High stirrer speed accuracy

uP based stirrer speed control

Tablet Dissolution Test Apparatus is an instrument for the determination of active drug ingredient in any pharmaceutical formulation – tablet or capsule as per USP, BP and IP specifications.

This apparatus evaluates adequate bio-availability and provides necessary information to formulate in the development of therapeutically optimum dosage forms.

This dissolution testing device plays an important role in product development, quality control and research.

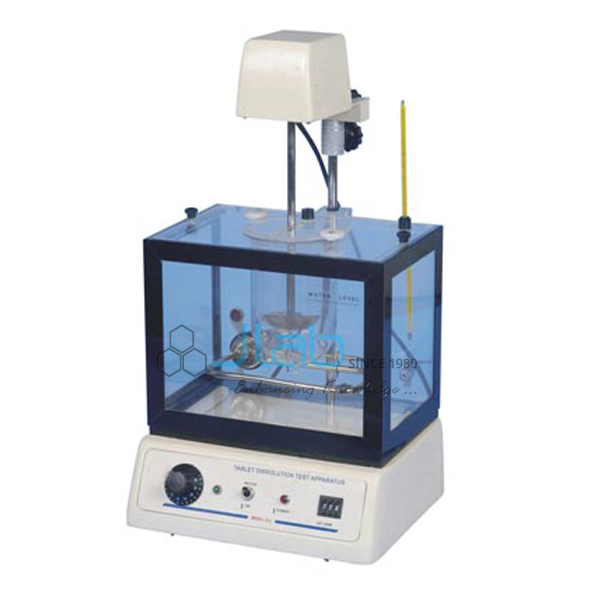

Single Test Dissolution apparatus consists of constant temperature, acrylic water-bath in which dissolution vessel is placed.

Dissolution medium specific for tablet /capsule formulation is added into this dissolution vessel.

Tablet or capsules are introduced in the vessel.

The stirrer speed is accurately controlled and maintained at ±1 rpm by microprocessor based speed controller and the temperature of the water-bath is accurately maintained at ± 1oC by a very sensitive thermostat.

The microcontroller, elegant design and advanced features make this instrument state-of-the-art dissolution testing apparatus. The analysis is performed as directed in the individual monograph.




25-200 RPM + 1 RPM




+ 1 RPM

Depth Adjustment

25 mm to 40 mm



10 - 50 0C


+ 1 C

Temperature Control

Thermostat 0-85C


Reaction Vessel

1000 ml jar with stirrer pedal and basket


1 KW


230 V ± 10% AC, 50 Hz

(L x B x H)

320 x 320 x 375 mm(Approx.)


9 Kg. (Approx.)


Main Unit with acrylic tank and rectangular cover platey

Reaction vessel - capacity 1000 ml

Round acrylic cover plate with hole and a large slit

Stirrer motor with tightening knob

S.S. paddle, stirrer shaft and clamp, stainless steel wire mesh basket, glad thermometer, s.s. support rod fitted with acrylic block

Instruction Manual-1 No., Dust Cover-1 No.
