Tenoning Machine Manufacturer,Supplier and Exporter in India

Tenoning Machine

Product Code : JA-WWPT-8716

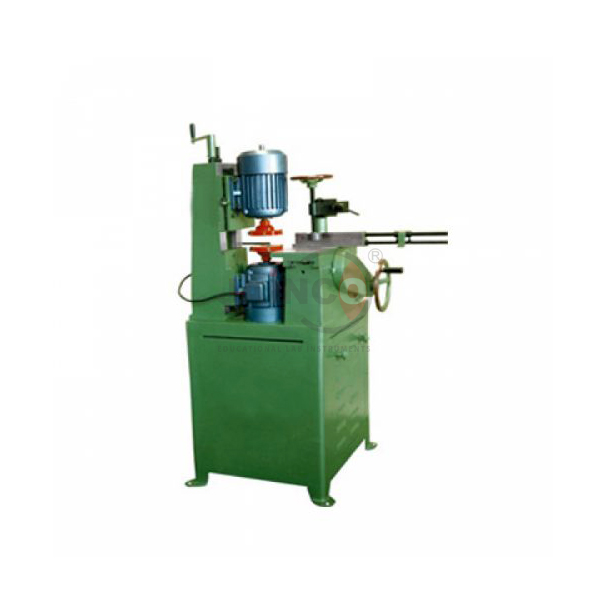

The tenoning machine cuts tenons for mortise-and-tenon joints in joinery training. It has an 18 x 7 inch table with 8 inches of movement, two 2 HP, 2800 rpm three-phase motors driving two carbide cutter blocks of 5-inch diameter and 0.875-inch width, and cuts tenons up to 5 inches long (SKU JA-WWPT-8716).

Specifications

Listed data:

ProductTenoning Machine
SKUJA-WWPT-8716
Table size18 x 7 inches
Table movement8 inches
Motors2 x 2 HP, 2800 rpm, three phase
Cutter blocks2, carbide, 5 inch diameter x 0.875 inch width
Maximum tenon length5 inches

Scope of supply and ordering

The listing covers one tenoning machine, supplied by JaincoLab. Lead time and packing depend on the order size and are confirmed when we quote.

Frequently asked questions

How long a tenon can it cut?
Up to 5 inches.

What cutters are fitted?
Two carbide cutter blocks, 5 inches in diameter and 0.875 inch wide, each on its own 2 HP motor.

Related products

See the wood workshop machine range for other items in this family.

Request a quote

Enquiries for the Tenoning Machine can be sent with the quantity needed through our contact page. For tender or project supply, see our tenders page.
