Ultrasonic Water Bath Manufacturer,Supplier and Exporter in India
Product Code : JA-B-1955
Jaincolab is a leading Ultrasonic Water Bath Manufacturer,and suppliers in India

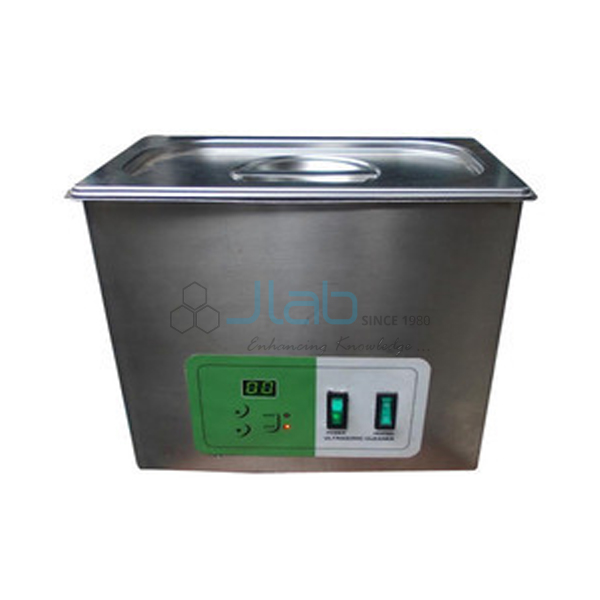

Ultrasonic Water Bath
Efficiency of 90% permits maximum cleaning action, low power consumption.
Extensively protected electronic circuits means longer and safer
operations.
Automatic frequency tuning for maximum output.
Input range of 170VAC-270VAC, highest immunity to input supply variations.
Pre-set Auto Degassing function.
Pulse Sweep Power for better effective cleaning.
Fitted with Microprocessor Based Digital Temperature
Indicator-Cum-Controller at any temperature from ambient +5ºC to 60ºC.
Also fitted with digital timer with settable range from 0-15 min or 0-30
min (depending upon the capacity ordered).
To work on 220/230 V AC Supply.
Extensively protected electronic circuits means longer and safer
operations.
High frequency electrical energy is converted into ultrasound waves by
means of Ultrsonic Transducers.
Compact, rugged and highly durable system.
Options
Chiller water circulator capacity 6 ltrs
Cooling coils fitted in the S.S. tank to cool the liquid inside the tank
through which chilled water is circulated (Option available only for capacity 7
ltrs and above)
Technical Specifications & Ordering Information
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
2.0 ltrs |
3.5 ltrs |
5.0 ltrs |
7.0 ltrs |
|
MOC (Outer) |
Stainless Steel Sheet buffed to mirror polish |
|||
|
MOC (Tank) |
Stainless Steel Sheet |
|||
|
Insulation |
High Grade Mineral Glass Wool |
|||
|
Heater |
Industrial Grade Energy efficient heaters. |
|||
|
Temperature Range |
Ambient +50C to 600C. |
|||
|
Temperature Controller |
Microprocessor Based PID Digital Temperature Indicator-cum-Controller |
|||
|
Display |
Digital LED Display with Set Value (SV) & Process Value (PV) (For
Digitally Controlled Unit) |
|||
|
Temperature Accuracy |
+10C |
|||
|
Operating frequency |
33 KHz +3KHz |
|||
|
Timer (Micro Controller Based) |
Fitted with Digital Timer as a standard feature |
|||
|
Standard Accessory |
Supplied with network basket. |
|||
|
Safety Feature |
Digital tuning of transducer with generators to avoid any frequency shift |
|||
