Upright Drilling Machine Manufacturer,Supplier and Exporter in India

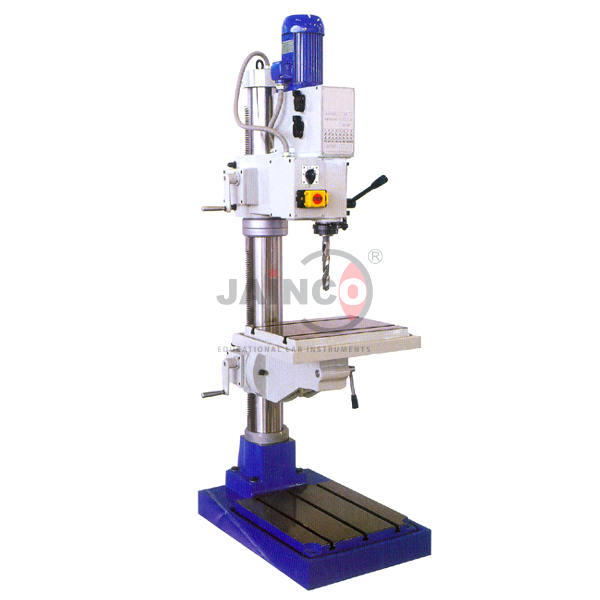

Upright Drilling Machine

Product Code : JA-MMTM-8967
Jaincolab is a leading Upright Drilling Machine Manufacturer,and suppliers in India, Upright Drilling Machine Manufacturer,and suppliers in South Africa, Upright Drilling Machine Algeria (Algiers), Upright Drilling Machine Angola (Luanda), Upright Drilling Machine Argentina (Buenos Aires), Upright Drilling Machine Armenia (Yerevan), Upright Drilling Machine Australia (Canberra), Upright Drilling Machine Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Upright Drilling Machine
Specification:-
Maximum spindle travel: 140mm (5 1/2 inches)
Maximum drilling diameter: 25mm (1 inch)
Taper of spindle bore: morse number 3
Distance from the center of spindle to the surface of the vertical column: 315mm (12 3/8 inches)
Flow capacity: 12L/min
Maximum distance from spindle nose to the surface of worktable: 660mm (26 inches)
Dimensions of working table: 315 x 415mm (12 3/8 x 16 3/8 inches)
Motor power: 0.75 or 0.55kW
Overall dimensions: 788 x 560 x 1,820mm (31 x 2263 inches), 788 x 560 x 1,835m (31 x 22 x 72.25 inches)
Net weight: 440/504 x 430/540kg
3-phase cooling pump
Maximum distance from spindle nose to base plate: 480mm (18 7/8 inches)
Dimensions of effective working area of worktable: 1,200 mm (47 1/4 inches)
Power: 0.04kW
Specifications: 380V, 50Hz
Dimensions of effective working area of base plate: 475 x 400mm (18 11/16 x 15 3/4 inches)
Spindle speeds range
50Hz: 100 to 2,900rpm
60Hz: 120 or 3480rpm
