Verification of Nortons and Thevenins Theorems Manufacturer,Supplier and Exporter in India
Product Code : JA-VONT-1131

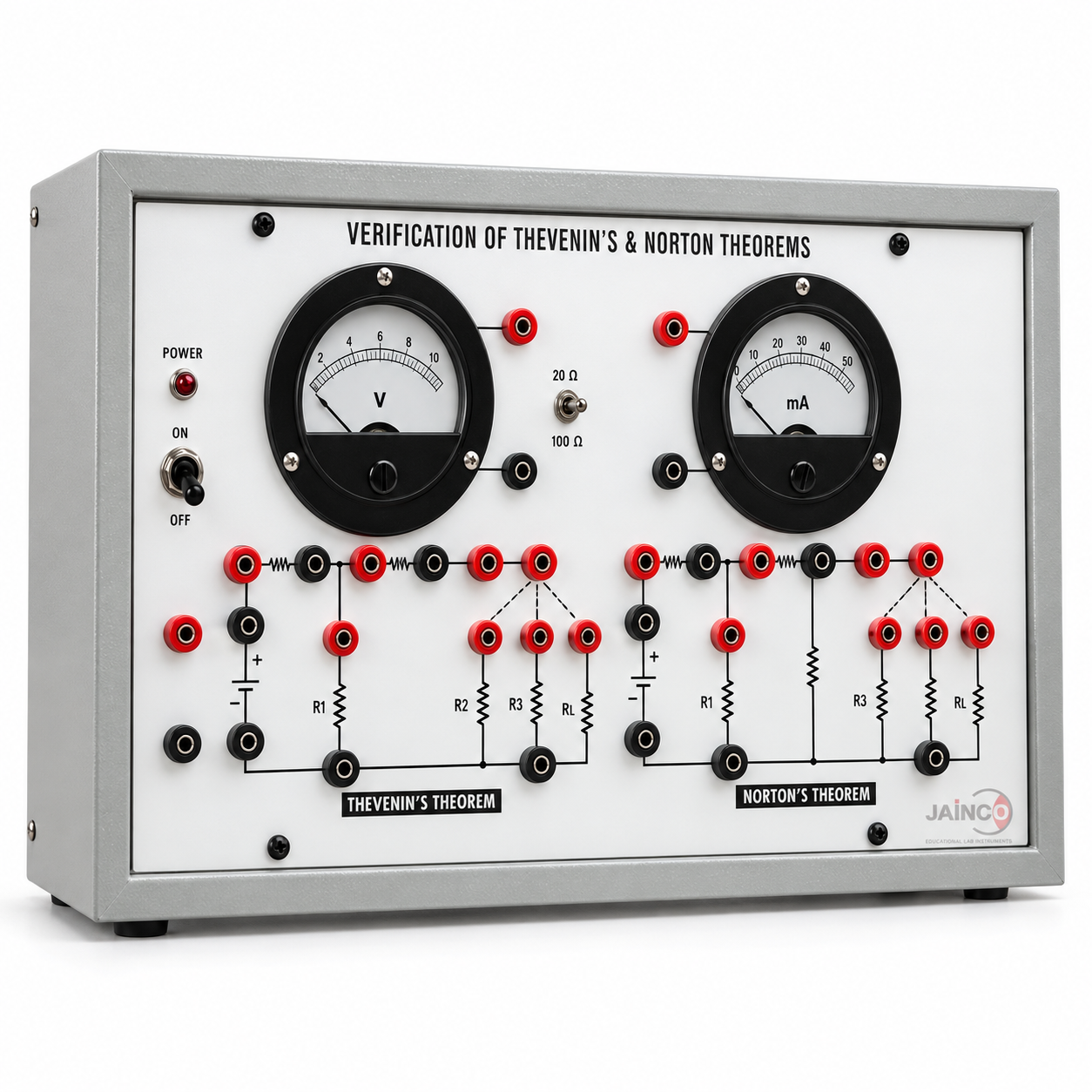

The Verification of Nortons and Thevenins Theorems trainer from Jaincolab is a bench-top apparatus that combines both Thevenin's Theorem and Norton's Theorem on a single unit, letting students verify each circuit-reduction method without switching between separate trainers.
As a Scientific Instrument manufacturer in India, Jaincolab supplies this trainer for physics and electronics lab equipment sessions where students need to compare both theorems side by side on the same linear DC circuit.
What the Theorems State
| Theorem | Statement |
|---|---|
| Thevenin's Theorem | Any linear circuit, however complex, can be simplified to an equivalent circuit with a single voltage source and series resistance connected to the load — useful when a particular resistor value changes and the circuit must be re-evaluated for each trial load resistance |
| Norton's Theorem | Any linear circuit containing several energy sources and resistances can be replaced by a single constant-current generator in parallel with a single resistor |
| Product Code | JA-VONT-1131 |
Key Features
- Combines Thevenin's and Norton's theorem verification on one bench-top unit
- Lets students compare voltage-source and current-source circuit equivalents on the same base circuit
- Useful for power-systems style analysis where load resistance is varied across trials
- Rugged, classroom-ready construction for repeated use in electronics lab sessions
- Manufactured by Jaincolab for consistent, reliable classroom results
Why Choose Jaincolab
As a leading Scientific Instrument Manufacturer, Supplier, and Exporter in India, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified and supplies electronics and physics lab apparatus to schools, colleges, and universities across India and internationally. If you need each theorem on a separate dedicated unit, see our standalone Verification of Nortons Theorem and Verification of Thevenins Theorem trainers, or the four-theorem Verification of Network Theorems unit. Browse the full Verification of Network Theorem range or explore Scientific Instrument for more electronics and physics laboratory equipment.
Applications
| Application Area | Use Case |
|---|---|
| Electrical / Electronics Engineering Labs | Comparing Thevenin's and Norton's equivalent circuits on one trainer |
| Polytechnic / Engineering Colleges | Circuit-theory coursework and lab assessment |
| Vocational & Diploma Institutes | Hands-on training in DC circuit reduction methods |
| Research & Demonstration | Reference trainer for circuit-analysis demonstrations |
Frequently Asked Questions
Q1. What does the Verification of Nortons and Thevenins Theorems trainer demonstrate?
It demonstrates both Thevenin's equivalent (voltage source with series resistance) and Norton's equivalent (current source with parallel resistance) for the same DC circuit.
Q2. How does this trainer differ from the standalone Verification of Nortons Theorem and Verification of Thevenins Theorem trainers?
This trainer combines both theorems on a single unit for side-by-side comparison, while the standalone trainers are dedicated to one theorem each.
Q3. What is Thevenin's Theorem used for?
It simplifies a complex linear circuit to an equivalent voltage source and series resistance, useful when analyzing circuits where load resistance changes across trials.
Q4. What is Norton's Theorem used for?
It simplifies a linear circuit with multiple sources and resistances into an equivalent constant-current generator with a parallel resistor.
Q5. Does Jaincolab supply this trainer outside India?
Yes, Jaincolab supplies this trainer to educational institutions across India and internationally.
Q6. Is Jaincolab a certified manufacturer of this instrument?
Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified for the manufacture of scientific and laboratory instruments.
