Vernier Height Gauge Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9067

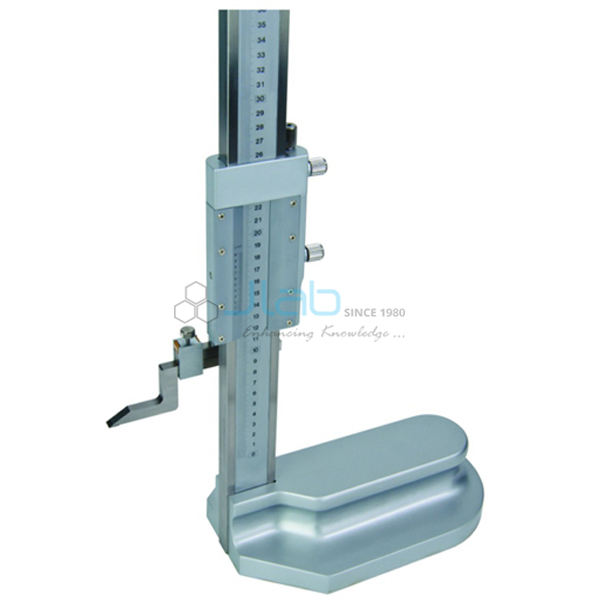

The Vernier Height Gauge (SKU JA-CLE-9067) measures and marks heights from a surface plate up to 300 mm, used for layout work and height inspection of machined parts. Its base, beam, sliding head and scriber are hardened and lapped, and it has a lock nut, a fine adjusting screw, a flush-fitting vernier and an anti-glare rust-resistant finish. This vernier height gauge 300 mm is supplied by JaincoLab in a fitted case for workshops and metrology labs.
Specifications
The Vernier Height Gauge has a 300 mm capacity from zero, a hardened and lapped base, beam, sliding head and scriber, a lock nut with fine adjusting screw and a flush-fitting vernier reading 0.001 inch, finished anti-glare and rust-resistant and supplied in a fitted case.
| Product | Vernier Height Gauge |
| SKU | JA-CLE-9067 |
| Capacity | 300 mm from zero |
| Inch reading | 0.001 inch |
| Metric reading | Confirmed on the quotation |
| Construction | Base, beam, sliding head and scriber hardened and lapped |
| Adjustment | Lock nut and fine adjusting screw |
| Vernier | Flush fitting |
| Finish | Anti-glare, rust-resistant |
| Case | Complete in fitted case |
Applications of the vernier height gauge
Used on a surface plate, the vernier height gauge lets students scribe accurate horizontal layout lines and measure step heights and hole centres on machined components.
- Marking out horizontal lines at set heights on a surface plate
- Measuring step heights and hole-centre heights
- Inspection of machined components in metrology practicals
- Fitting and machining trade training in ITI and polytechnic workshops
- Mechanical measurement labs in B.Tech programmes
Scope of supply and ordering
This listing covers one vernier height gauge of 300 mm capacity with scriber, complete in a fitted case. A surface plate is not part of this listing and can be quoted separately. Accessories, spares and quantities are confirmed on the quotation.
The quotation confirms MOQ, lead time and packing for the Vernier Height Gauge against the quantity and delivery address. Orders range from one unit for a single lab to bulk and tender supply for institutions.
Frequently asked questions
What is the measuring capacity?
The gauge measures from zero to 300 mm.
What is the reading of the vernier?
The source lists 0.001 inch; the metric reading is confirmed on the quotation.
Does it include a scriber?
Yes. The sliding head carries a hardened and lapped scriber for marking out.
Related products
See the complete mechanical engineering lab equipment range for related items, including metrology and workshop measuring tools.
Request a quote
To get a quotation for the Vernier Height Gauge, send SKU JA-CLE-9067, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
