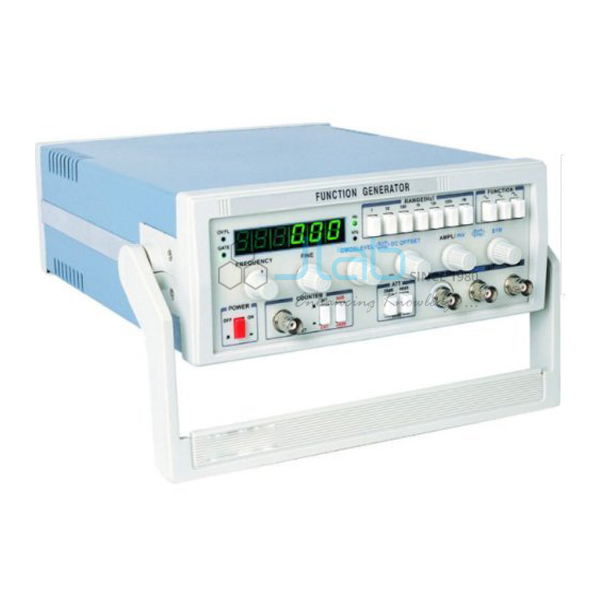

2 MHz Function Generator Manufacturer,Supplier and Exporter in India
Product Code : JA-SG-1546
The 2 MHz function generator covers 0.1 Hz to 2 MHz and gives sine, triangle, square, ±ramp and ±pulse waveforms for electronics and physics practicals. It has a voltage-controlled frequency (VCF) input, TTL/CMOS and synchronous outputs, and a built-in 1 Hz to 30 MHz frequency counter (SKU JA-SG-1546).
Specifications
Listed data:
| Product | 2 MHz Function Generator |
| SKU | JA-SG-1546 |
| Frequency range | 0.1 Hz to 2 MHz |
| Waveforms | Sine, triangle, square, ±ramp, ±pulse |
| VCF | Voltage-controlled frequency capability |
| Outputs | TTL/CMOS output; synchronous output |
| Distortion | Less than 1% at 10 Hz to 100 kHz |
| Frequency response | Within 0.5 dB at 0.1 Hz to 100 kHz |
| Frequency counter | 1 Hz to 30 MHz |
Scope of supply and ordering
This listing is for the 2 MHz function generator, supplied by JaincoLab. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
What frequency range does the 2 MHz model cover?
0.1 Hz to 2 MHz.
What is the range of its frequency counter?
1 Hz to 30 MHz.
Related products
- 5 MHz Function Generator
- 10 MHZ Function Generator
- MHz AM and FM Function Generator
- 150 MHz RF Signal Generator
Other products in this group are in the signal generator range.
Request a quote
Request a quotation for the 2 MHz Function Generator (SKU JA-SG-1546) through the JaincoLab contact page. Buying under a laboratory tender? Use our tenders page.
