15 MHz Function Generator

Product Code : JA-SG-1550

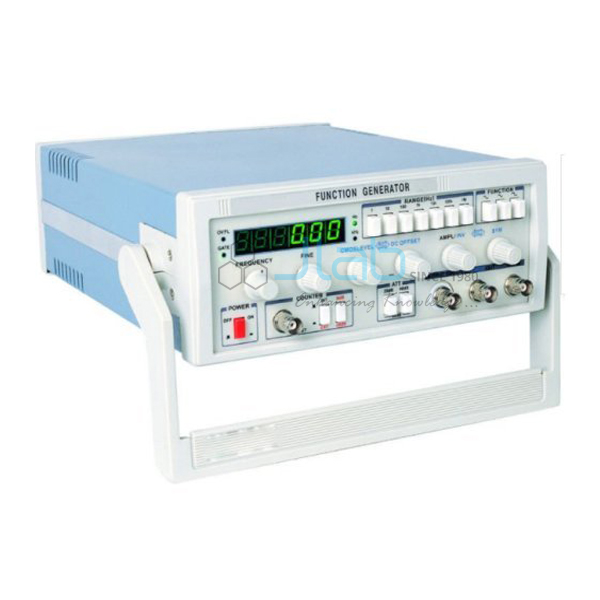

The 15 MHz Function Generator gives sine waves from 0.1 Hz to 15 MHz on one channel, for tuned circuits and wideband amplifier work. Square waves go to 10 MHz, pulses to 5 MHz, and triangle and ramp waves to 1 MHz. Linear and log sweep, a TTL sync output and a five-digit readout are included.

Specifications of the 15 MHz function generator

Product codeJA-SG-1550
Sine waveOne channel, 0.1 Hz to 15 MHz; response within 0.5 dB from 0.1 Hz to 100 kHz
Sine distortionBelow 1% from 10 Hz to 100 kHz
Upper limits of other waveformsSquare 10 MHz; variable pulse 5 MHz; triangle and ramp 1 MHz
Output50 ohm BNC; 10 Vpp into 50 ohm at low frequencies, with a separate amplitude rating for the top band
DC offsetUp to ±5 V, within the amplitude headroom
SweepLinear and logarithmic
Sync and controlTTL sync output; VCF capability
Frequency readoutAt least five digits; counter range 1 Hz to 30 MHz
Power supply230 V AC, 50 Hz
Supplied byJaincoLab

Timing and bridge practicals with the 15 MHz generator

  • Time constant of an RC network. Drive the RC Circuit Transient Response board with a slow square wave. Measure how long the capacitor voltage takes to reach about two-thirds of its final value. Compare that time with the product of R and C.
  • Wien bridge balance. Feed a sine into the Wien Bridge and tune the frequency for a null at the detector. Work out the expected frequency from the bridge arms and compare it with the five-digit readout.
  • Checking the readout. Connect the main output to the Frequency Counter and compare both readings band by band. Then view the same signals on the Digital Storage Oscilloscope 40MHz to see how the square and pulse shapes change near their upper limits.

Frequently Asked Questions

What is the difference between peak-to-peak and peak amplitude on the generator?
Peak-to-peak is the full swing from the lowest point of the wave to the highest. Peak, or amplitude, is half of that, measured from the centre line. A 10 Vpp sine therefore has a peak of 5 V, and a meter that reads RMS shows a smaller value again.

How do we avoid ground loops when the generator and the oscilloscope share a circuit?
On most mains-powered bench instruments the BNC screens connect to mains earth, so the ground clips of the generator and the scope are already joined. Clip both grounds to the same circuit point, never to two different points. Keep leads short and never ground a clip on a node that sits above earth.

How do we get a very small test signal for a sensitive amplifier?
Turn the amplitude control well down first, then add an external attenuator or a resistor divider at the output. The signal stays clean, and the divider gives the amplifier a low source resistance. Measure the input level on the scope rather than trusting the dial near the bottom of its range.

How do we ask for a quotation for a class set of generators?
Send the product name, the number of benches and any accessories your lab needs through our contact page. For distributors and education projects, JaincoLab can also build custom kits that combine generators with other bench instruments. Tender and project enquiries go to the tenders page.

What should the import documents say for this generator?
Describe it as a function generator, a type of signal generator, and give the product code JA-SG-1550 with its frequency range. A clear description keeps it under the signal generator heading rather than with measuring instruments such as oscilloscopes. Your customs broker then sets the full tariff line.
